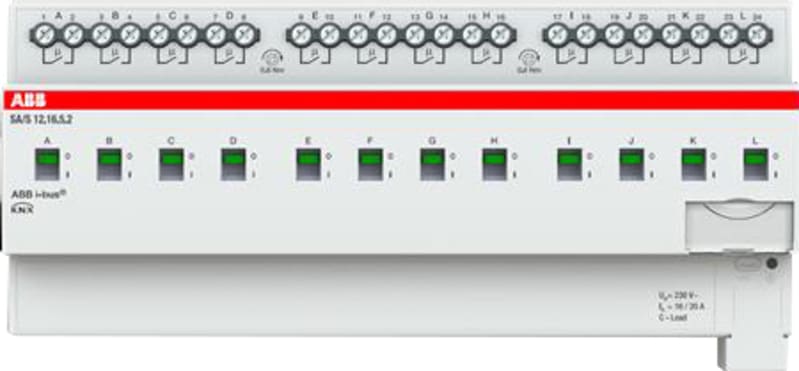

ABB SA/S12.16.5.2 KNX Switch Actuator, 16 A, 12-Channel, AC3 Load
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA/S12.16.5.2 is a KNX switch actuator with twelve channels rated 16 A for AC3 loads at 230 V. It occupies twelve modular spacings on the DIN rail and supports C-loads, local hand operation with LED indication and different-phase connection. Maximum switching power 3680 W, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S12.16.5.2
- EAN / GTIN
- 4016779066518
- HS code
- 8536.90
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 12
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 3680 W
- Output power
- 3680 W
- Suitable for C-load
- Yes
- Max. number of switching contacts
- 12
- Max. switching current
- 20 A
- Rated current
- 20 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066518
- SAP 1200426098
- Code 82454915
Product Documentation
More from ABB
ABB
ABB DIN RAIL-SIZE 6 Gemini IP66 Insulating switchboards accessories 1SL0293A00
ABB
SOR XT1..XT4 12 Vdc (1SDA066313R1)
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — Ekip M-In, In=32 A, 3-Pole
1SDA067887R1
ABB
Impressivo SENT.PL. 2 X RJ45 Aluminium
2TKA000607G1
ABB
Impressivo 1-H KAP WITH RAM 54/80 Anthracite
1721S80-81
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=100 A, 4-Pole
1SDA067836R1
ABB
ABB 41381F-H OS accessories, Flush-mounted box, 1 module,size 1/1, Grey
ABB
ABB SACE Tmax XT7H 1000 Moulded-Case Circuit Breaker — Ekip M Dip In, In=1000 A, 3-Pole
1SDA100927R1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SA/S12.16.5.2?
- SA/S12.16.5.2 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is SA/S12.16.5.2.
- What is the HS code for SA/S12.16.5.2?
- The customs tariff (HS) code for SA/S12.16.5.2 is 8536.90.
- Who manufactures SA/S12.16.5.2?
- SA/S12.16.5.2 is a ABB product in the Electrical Components range.
- Is a datasheet available for SA/S12.16.5.2?
- Yes — the SA/S12.16.5.2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SA/S12.16.5.2?
- The minimum order quantity is 1.
- Is SA/S12.16.5.2 available?
- Yes — SA/S12.16.5.2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
