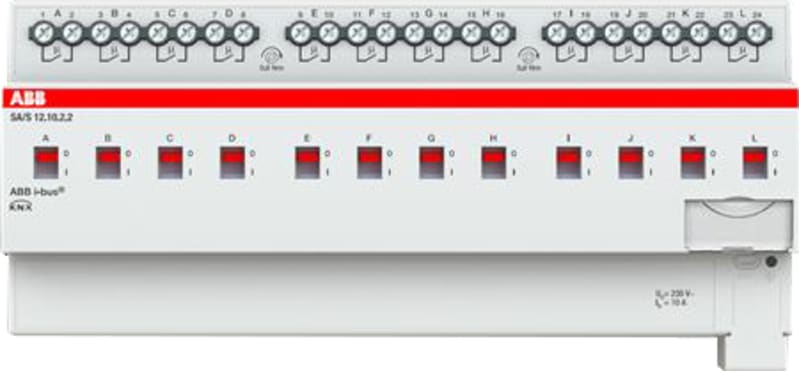

ABB SA/S12.10.2.2 KNX Binary Switch Actuator 12-Channel 10 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA/S12.10.2.2 is a 12-channel KNX binary switch actuator rated 10 A per channel for AX loads. Rated operating voltage is 230 V with maximum switching power of 2500 W per channel and support for different phases across outputs. Manual operation and LED indication are provided on the front. Ingress protection is IP20 with detachable bus connection. Manufactured in Germany.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S12.10.2.2
- EAN / GTIN
- 4016779066617
- HS code
- 8536.90
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 12
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2500 W
- Output power
- 2500 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 12
- Max. switching current
- 10 A
- Rated current
- 10 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066617
- SAP 1200426068
- Code 82454539
Product Documentation
