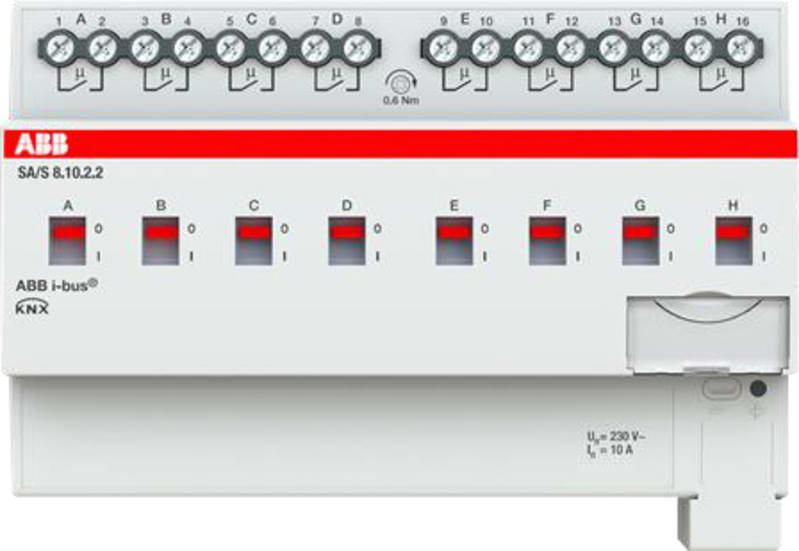

ABB SA/S8.10.2.2 KNX switch actuator, 8-channel, 10 A AX
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA/S8.10.2.2 — KNX switch actuator with 8 independently switchable channels, rated 10 A per contact for AX loads up to 2500 W. 230 V operation with LED indication, local manual control and bus connection, occupying 8 modular spacings on DIN rail. Different phases may be connected per channel.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S8.10.2.2
- EAN / GTIN
- 4016779066594
- HS code
- 8536.90
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 8
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2500 W
- Output power
- 2500 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 8
- Max. switching current
- 10 A
- Rated current
- 10 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066594
- SAP 1200426067
- Code 82454528
Product Documentation
