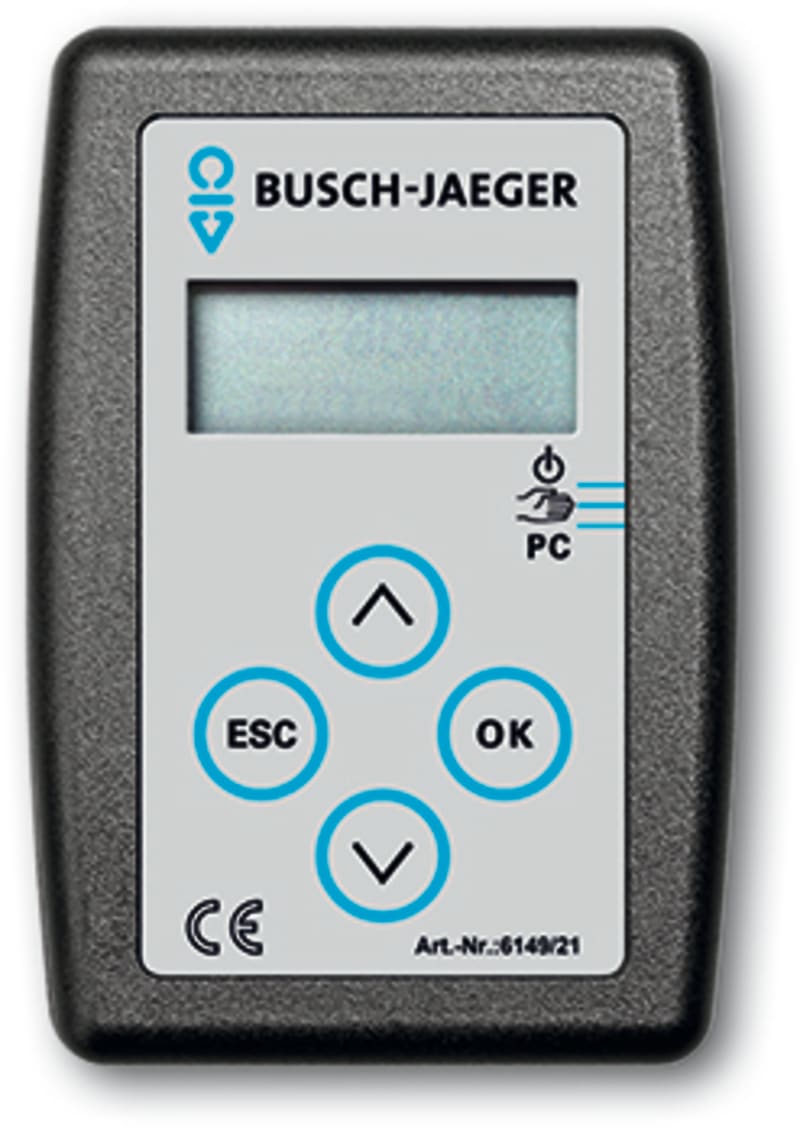

PROG.GRENSESN. 6149/21-500 (2CKA006133A0201)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006133A0201 — For ABB i-bus ® KNX bus coupler 6120/12-101, 6120/13, 6197/12, 6197/13, 6197/14, 6197/15. Commissioning via USB connection and SD card slot. Data on SD card can be selected using the 4 push buttons using 4 push buttons shown on the 3-line backlit display. With integrated battery for autonomous operation for up to 8h. Battery is charged by the PC via USB cable. For interfacing a PC to the KNX. Allows direct access from PC to KNX bus (ETS 4.0 onwards).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006133A0201
- EAN / GTIN
- 4011395118962
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073B7270
- Mounting Type
- Handheld housing
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- USB
- Display Type
- LCD
- Number of Batteries
- 1
- Battery Size
- AAA
- Battery Chemical Composition
- Nickel-Metal Hydride
- Battery Integration Type
- Replaceable Rechargeable
- Battery Weight
- 15 g
- Battery Lithium Amount
- 0 g
- Design Range
- priOn
- Surface Finishing
- Untreated; Matt
- Housing Material
- Thermoplastic
- Material
- Thermoplastic
- Color
- black
- Product Net Width
- 72 mm
- Product Net Height
- 104 mm
- Product Net Depth / Length
- 26 mm
- Screen Size
- 1.57 in
- Declaration of Conformity - CE
- 2CKA100000E1116
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000674 - Interface for bus system
- eClass
- V11.0 : 27143102
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Material quality
- Thermoplastic
- Max. data transmission rate
- 9600 Bd
- With bus connection
- Yes
- With label area
- No
- With LED indication
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395118962
- SAP 1000464440
- Code 8880093
Product Documentation
More from ABB
ABB
Switch FOR DIN-RAIL E211-16-10
ABB
ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=630 A, 3-Pole
1SDA107563R1
ABB
ABB Impulse Relay E290-32-11/8 32 A 8 V AC
2TAZ322000R2063
ABB
Detector TVOC-2-DP1 1M
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — TMD 12,5-125, In=12.5 A, 3-Pole
1SDA067681R1
ABB

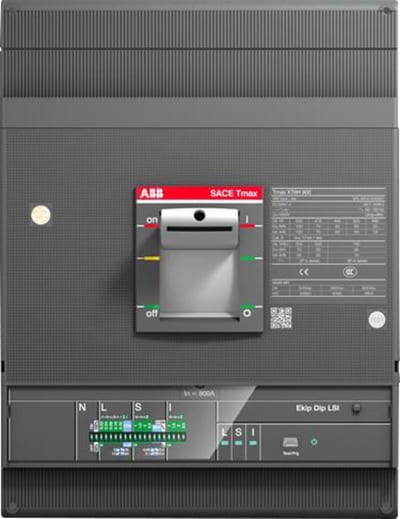

ABB SACE Tmax XT6S 800 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=800 A, 3-Pole
XT6S 800 Ekip Dip LSI In=800 3p F F
ABB

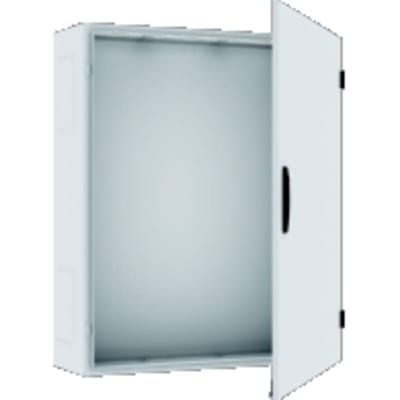

WALL-Mount Cabinet TG509G 1400X1300X225MM IP55
2CPX010029R9999
ABB

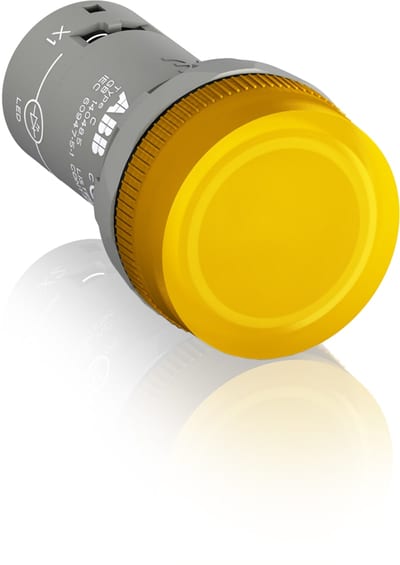

Indicator LAMP Yellow LED CL2-502Y
