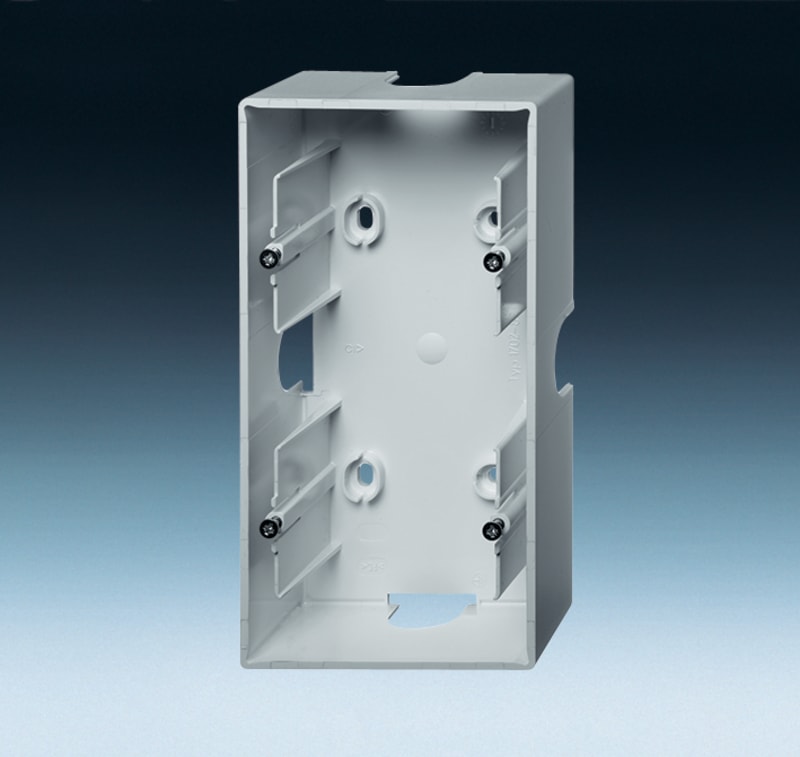

ABB 2CKA001799A0902 Future Linear 2-Gang Surface-Mounting Box, Studio White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA001799A0902 is a Future Linear surface-mounting box (1702-84) for two gangs of inserts and cover plates, moulded in halogen-free thermoplastic in studio white (similar to RAL 9016). External dimensions are 80 by 151 by 42 mm, IP20 protection, with rear cable and duct entries for both horizontal and vertical orientation. Compatible with modular domestic switching devices in the Future Linear and Platform 63 ranges. Country of origin is Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA001799A0902
- EAN / GTIN
- 4011395065976
- Sales unit
- pcs
- Mounting Type
- Surface Mounted
- Mounting Orientation
- Horizontal; Vertical
- Modular Components Included
- Surface Mounting Box
- Degree of Protection
- IP20
- Opening Shape
- Angular
- Design Range
- future linear; Platform 63
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white
- Number of Gangs
- 2-gang
- Product Net Width
- 80 mm
- Product Net Height
- 151 mm
- Product Net Depth / Length
- 42 mm
- Built-In Depth ( t 2 )
- 39.5 mm
- Dimension Diagram
- 2CKA000097E0252
- Declaration of Conformity - CE
- 2CKA100000E4029
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000080 - Surface mounted box for flush-mounted switching equipment
- eClass
- V11.0 : 27144003
- Assembly arrangement
- Surface mounted box
- Colour
- White
- Width
- 80 mm
- Halogen free
- Yes
- Height
- 151 mm
- Depth
- 42 mm
- Number of units
- 2
- Shock resistant
- No
- Surface protection
- Untreated
- With cable entry
- Yes
- Material quality
- Thermoplastic
- With cover frame
- No
- Mounting direction
- Horizontal and vertical
- Inlet from the rear
- No
- Transparent
- No
- With screw gland entry
- No
- With duct entry
- Yes
- Device width
- 81 mm
- Device height
- 151 mm
- Device depth
- 42 mm
- Suitable for modular domestic switching devices
- Yes
- Desktop device
- No
- Cross-trunking mounting
- No
- With installation tube entry
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
