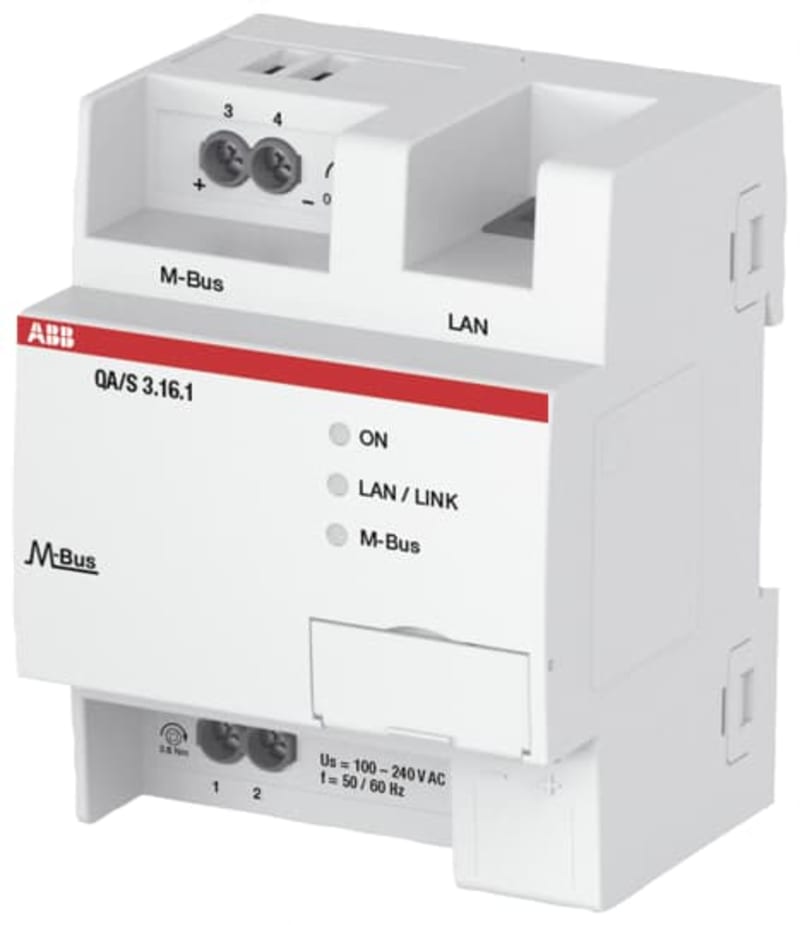

Energianalysator QA/S3.16.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB QA/S3.16.1 — Energy management solution for capturing and analyzing consumption data of up to 16 electricity, gas, water or heat meters via M-Bus. Web-based user interface with graphical analysis functions such as historical data, dashboard, and more. Various export functions and APIs for further processing of metering data.
Technical Specifications
- Manufacturer part number (MPN)
- QA/S3.16.1
- EAN / GTIN
- 4016779997751
- Sales unit
- pcs
- Model Number
- Other
- Compatible Bus Systems
- m-Bus
- Product Range
- KNX
- Connection Type
- Direct
- Manual Operation
- No
- Number of Batteries
- 0
- Application Function
- Building Management
- Voltage Range
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- 230 V AC
- Power Loss
- Total 3 W
- Color
- light grey
- Degree of Protection
- IP20
- Width in Number of Modular Spacings
- 4.0
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Built-In Depth ( t 2 )
- 64.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAF632778_EPLAN
- CAD Dimensional Drawing
- 2CDC072033F0015
- Declaration of Conformity - CE
- 2CDK512092D2701
- EU Data Act Compliance Declaration
- 9AKK108471A5065
- Cyber Security Software Support Period
- 2 year
- Instructions and Manuals
- 2CDG941193P0001
- Mounting Type
- DIN-Rail
- ETIM 9
- EC001102 - Energy management for bus system
- UNSPSC
- 41111928
- eClass
- V11.0 : 27143126
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Max. number of counters
- 16
- Type of primary energy
- Current
- Interfaces data transmission
- Ethernet
- Nominal voltage
- 230 V
- Nominal frequency
- 50–60 Hz
- Suitable for degree of protection (IP)
- IP20
- Housing width
- 72 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.69
Cross References
- EAN 4016779997751
- SAP 1200051657
- Code 81892574
