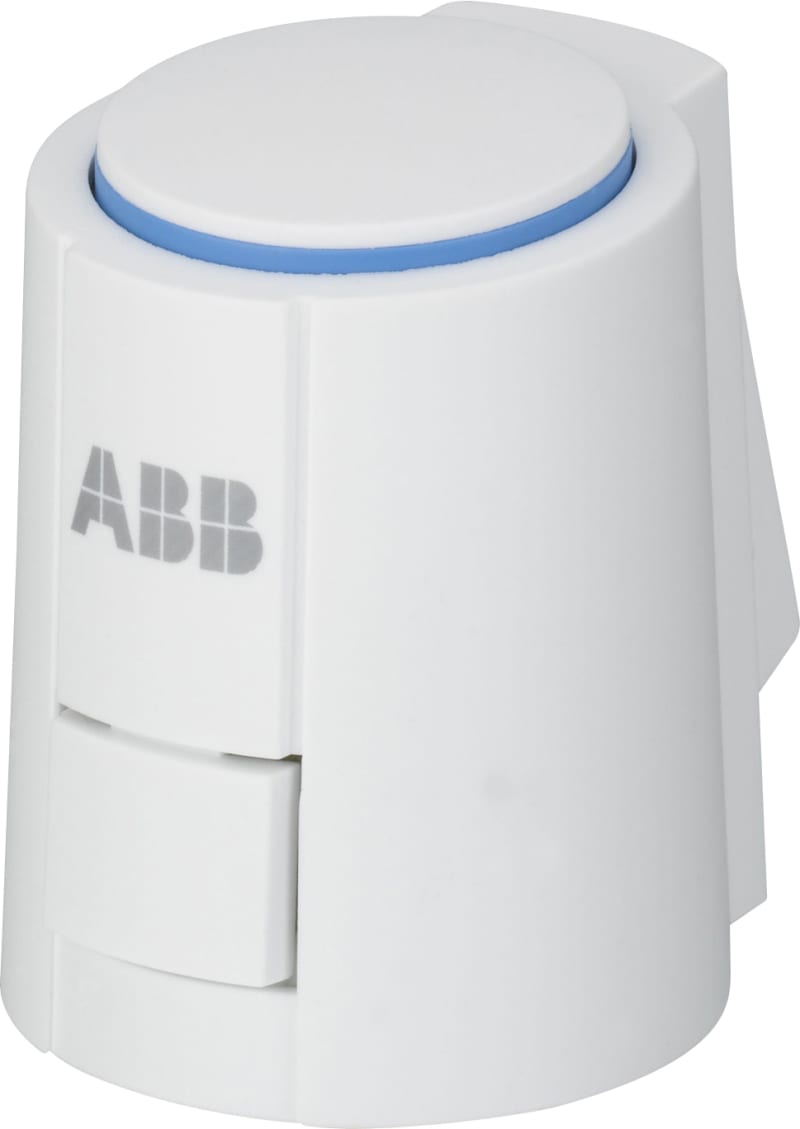

Thermoshunt TSA/K24.2 (2CDG120050R0011)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG120050R0011 — The Thermoelectric Valve Drives TSA/K are suited for opening and closing valves in Heating, Ventilating and Air-Conditioning (HVAC) systems. The devices are normally closed available in 230 V AC and 24 V AC/DC with pluggable connecting cable. The shapely housing protects the device against splash water. The device is especially suited to control radiators, converter heaters and cooling ceilings for single room temperature controlling. The valve drive can be controlled with the Electronic Switch Actuator ES/S or with the Electronic Relay ER/U in combination with the Universal Interface US/U and a Room Thermostat. The easy and quick snap-on mounting on all common valves occurs via Valve Adapters VA/Z.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG120050R0011
- EAN / GTIN
- 4016779950688
- Sales unit
- pcs
- Instructions and Manuals
- 9AKK2017-108777
- Wiring Diagram
- 2CDC072005F0015
- Mounting Type
- Built-in; Surface Mounted
- Modular Components Included
- Complete Device
- Degree of Protection
- IP54
- Data Sheet, Technical Information
- 2CDC508159D0101
- Product Range
- KNX; free@home; free@home wired
- Manual Operation
- No
- Number of Batteries
- 0
- Rated Voltage (U r )
- 24 V AC
- Rated Frequency (f)
- 0 ... 60 Hz
- Power Loss
- 1 W; Total 1 W
- Color
- white
- Product Net Width
- 44.4 mm
- Product Net Height
- 59.1 mm
- Product Net Depth / Length
- 58.4 mm
- Dimension Diagram
- 9AKK108469A8430
- EPLAN Data
- 9AKK108464A1078
- Building Information Modeling – BIM
- 9AKK107046A4273
- Declaration of Conformity - CE
- 2CDK508155D2702
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000792 - Actuating drive for bus system
- eClass
- V11.0 : 27143135
- UNSPSC
- 31251505
- IDEA Granular Category Code (IGCC)
- 3262 >> Valve actuators
- Object Classification Code
- A
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779950688
- SAP 1000724975
- Code 8454436
Product Documentation
