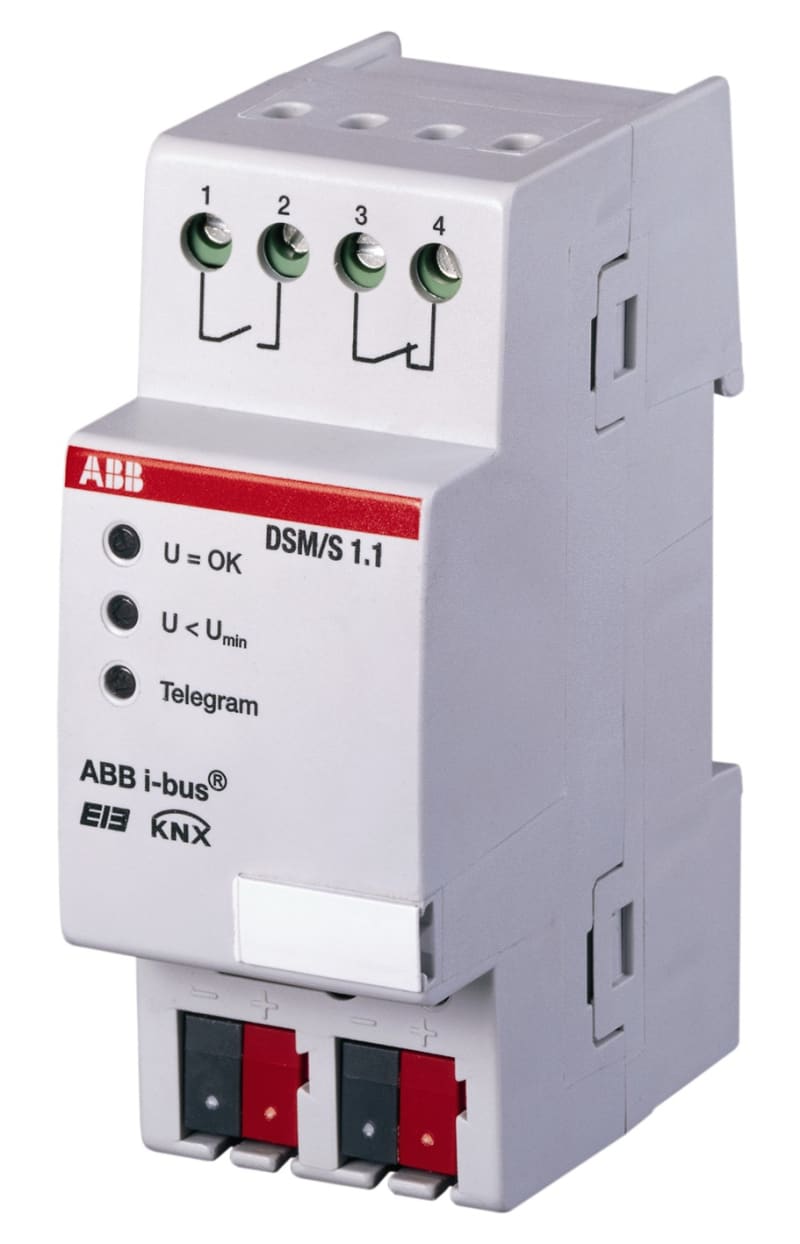

Diagnosmodul DSM/S1.1 (2CDG110060R0011)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110060R0011 — The Diagnosis and Protection Module enables quick diagnostics of the bus state and indicates telegram traffic via an LED. A bus fault (U<Umin) is indicated by a changeover contact. The DSM incorporates a suppressor diode which suppresses transient overvoltages and interference voltage spikes on the KNX.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110060R0011
- EAN / GTIN
- 4016779652056
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941023P0003
- Wiring Diagram
- 9AKK108464A0304
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC503027D0202
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Product Type
- Diagnosis and Protection Module
- Manual Operation
- No
- Number of Batteries
- 0
- Power Loss
- 0.15 W; Total 0 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189154_EPLAN
- Declaration of Conformity - CE
- 2CDK503035D2701
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0033
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001583 - Accessories/spare parts for bus system
- eClass
- V11.0 : 27143192
- UNSPSC
- 32151802
- Object Classification Code
- A
- Accessory
- No
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779652056
- SAP 1000464404
- Code 8880027
Product Documentation
