ABB

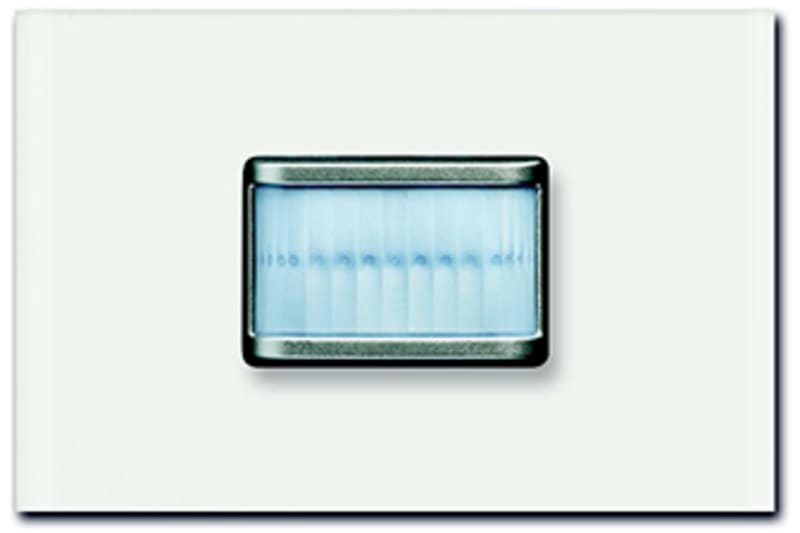

BEVEG. PriOn 6345-811-101-500
Part number2CKA006310A0176EAN / GTIN4011395156834HS code8538.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006310A0176 — Movement detector with up to 4 channels. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006310A0176
- EAN / GTIN
- 4011395156834
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Mounting Position
- vertical
- Mounting Height
- Optimum 1.1 m
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA000073B7389
- Number of Channels
- 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Sensor Detection Range
- Horizontal 0 ... 180 °; Vertical 0 ... 5 °
- Design Range
- priOn
- Surface Finishing
- Glossy; Nano coated
- Material
- Glass
- Color
- white
- Product Net Width
- 107 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 31 mm
- Built-In Depth ( t 2 )
- 33 mm
- Dimension Diagram
- 2CKA000097E0653
- EPLAN Data
- 9AKK108464A1285
- Declaration of Conformity - CE
- 2CKA100000E1503
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001582 - Movement sensor for bus system
- eClass
- V11.0 : 27143144
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Surface protection
- Nano coated
- Colour
- White
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- Optimum mounting height
- 1.1 m
- Max. reach sideways
- 6 m
- Max. reach frontally
- 6 m
- Detection angle vertical
- 0–5 °
- Detection angle horizontal
- 0–180 °
- Min. depth of built-in installation box
- 33 mm
- Width
- 107 mm
- Height
- 71 mm
- Depth
- 31 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395156834
- SAP 1000407950
- Code 81124551
Product Documentation
Document preview: ABB 2CKA006310A0176 — OEM Product Page
More from ABB
ABB
ABB GMA1SL0446A00 Gemini hinges - size 6;Gemini hinges - size 6
ABB
IP Router Secure
IPR/S3.5.1
ABB

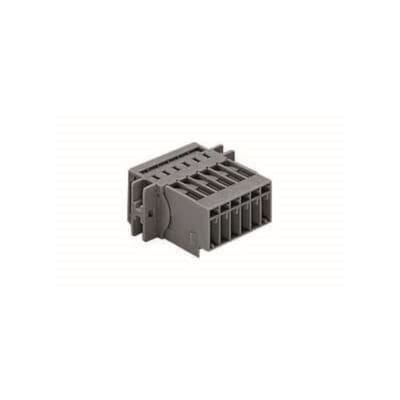

ABB 1SDA066409R1 Connectors PLUG-Socket Switchboard 3PIN XT1..XT5
ABB

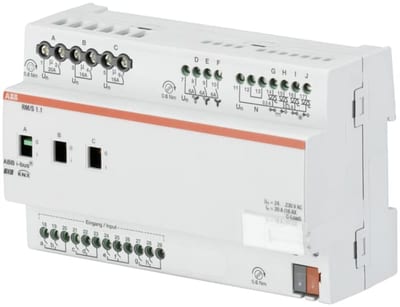

ROM Master Basic (2CDG110094R0011)
ABB

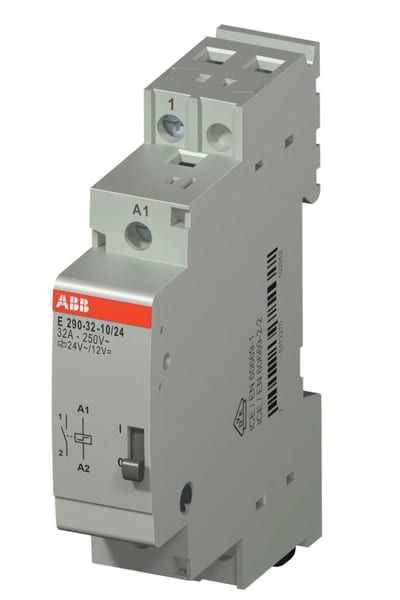

ABB Impulse Relay E290-32-10/24
2TAZ322000R2041
ABB

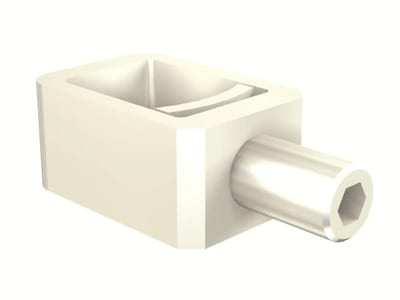

KIT FC CuAl 1X35...185MM2 XT5 3 Pcs
1SDA104746R1
ABB

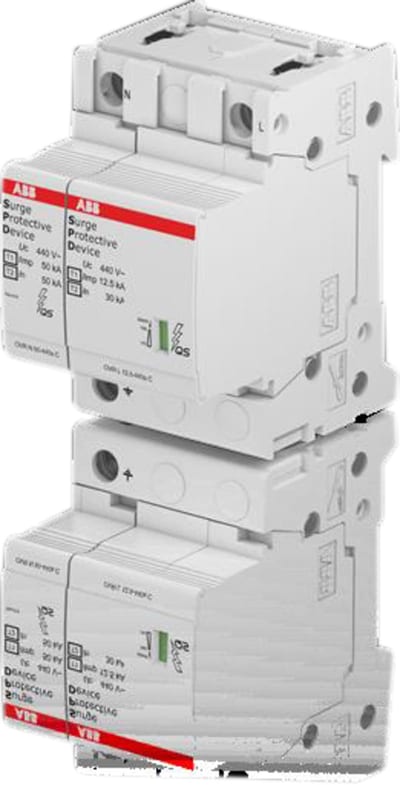

OVR T1-T2 N1 12.5-440S P QS
2CTB815710R4400
ABB

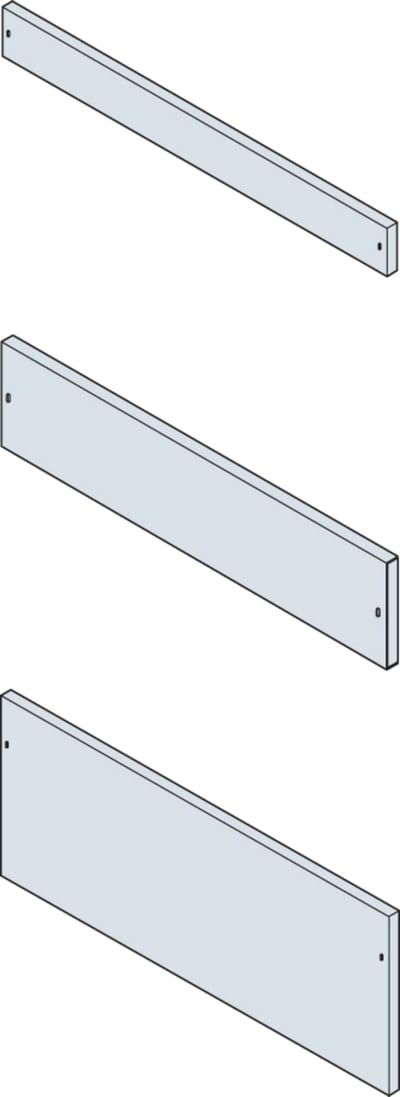

Blindav.H=150 GEMINI size.4+5
