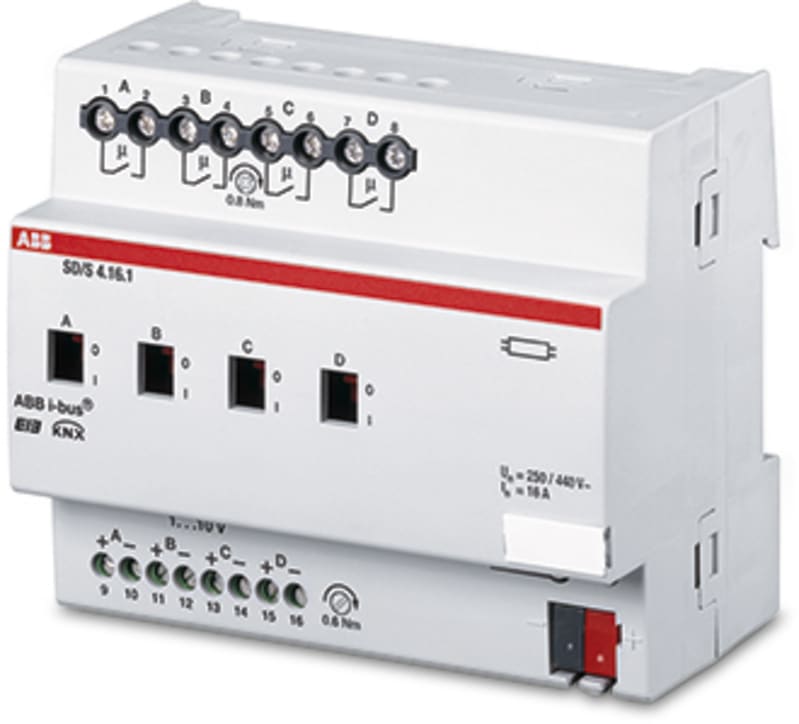

Switch/DIM, 1-10V SD/S4.16.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SD/S 4.16.1 — MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary.
Technical Specifications
- Manufacturer part number (MPN)
- SD/S 4.16.1
- EAN / GTIN
- 4016779659376
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941042P0003
- Wiring Diagram
- 2CKA000097E0070
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507067D0201; 2CDC507071D0201
- Number of Outputs
- 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Rated Operational Voltage
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Maximum Switching Current
- 16 A
- Maximum Control Current DC
- 100 mA
- Rated Frequency (f)
- 50/60 Hz
- Load Type
- Electronic Ballast 1-10V; Universal; Fluorescent Lamp
- Power Loss
- 5.2 W; Total 5 W
- Color
- light grey
- Width in Number of Modular Spacings
- 6
- Product Net Width
- 108 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 9AKK107680A8866
- EPLAN Data
- 9AAC189179_EPLAN
- Declaration of Conformity - CE
- 2CDK507126D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0767
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0105
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001094 - Dimming actuator for bus system
- eClass
- V11.0 : 27143123
- UNSPSC
- 39121801
- Object Classification Code
- A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779659376
- SAP 1000191768
- Code 81025496
Product Documentation
