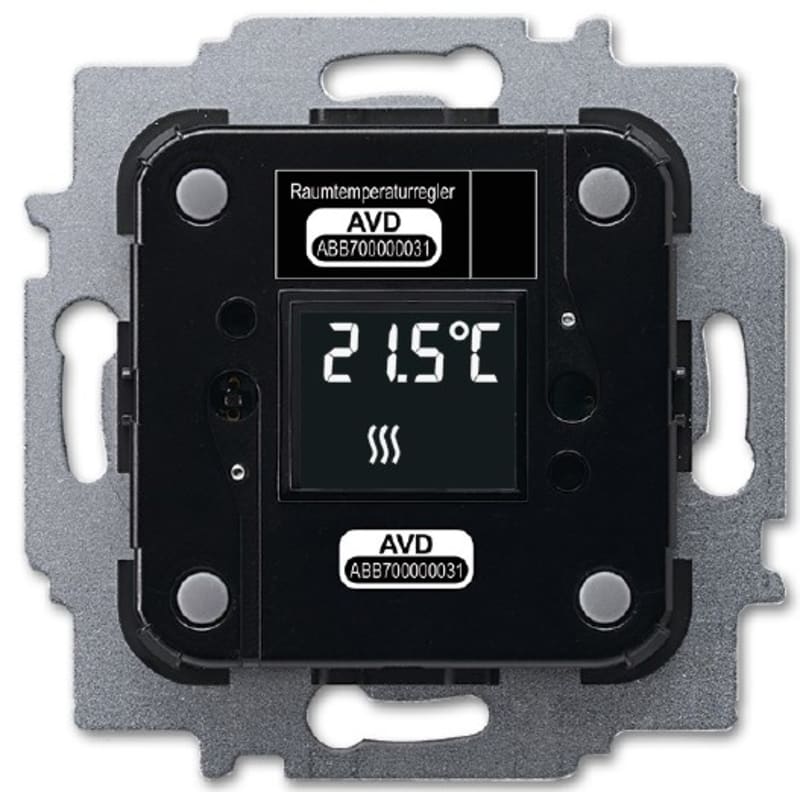

Thermostat 6108/18-500 with BUSKOBL.
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 6108/18-500 — Control element with room thermostat function for triggering the heating, ventilation and fan-coil actuators. For controlling commercially available valve drives. For contacting cover plate 6236-xxx. With integrated temperature sensor. With display of set-value temperature. Master/slave configuration. With base-load operation. The bus can be connected via enclosed terminal block. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 6108/18-500
- EAN / GTIN
- 4011395211014
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Modular Components Included
- Flush Mounted Insert with Control Element
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA001373B8913
- Number of LEDs
- 1
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Display Type
- LCD
- Screen Type
- Flat
- Terminal Type
- Bus Connection
- Rated Voltage (U r )
- 24 V
- Auxiliary Voltage AC/DC
- 24 V AC/DC
- Rated Current (I n )
- 5 A
- Design Range
- Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- Color
- black
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 30 mm
- Built-In Depth ( t 2 )
- 15.7 mm
- Dimension Diagram
- 2CKA000097E3993
- Screen Size
- 1 in
- EPLAN Data
- 9AKK108464A1193
- Declaration of Conformity - CE
- 2CKA100000E1140
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0008
- Declaration of Conformity - UKCA
- 2CKA400000E0207
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
- UNSPSC
- 39121803
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395211014
- SAP 1000760009
- Code 8526473
Product Documentation
More from ABB
ABB

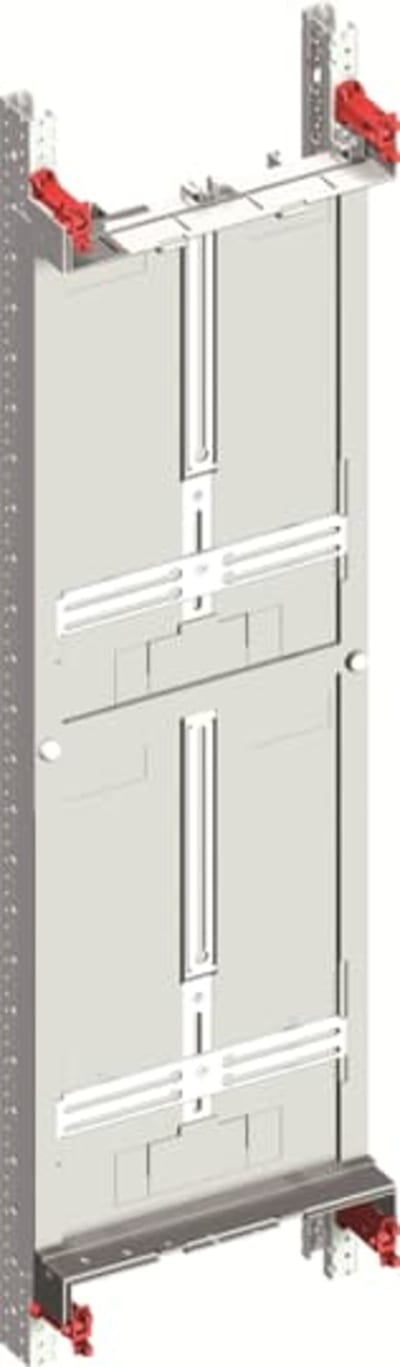

MBZ 161 (2CPX041821R9999)
ABB

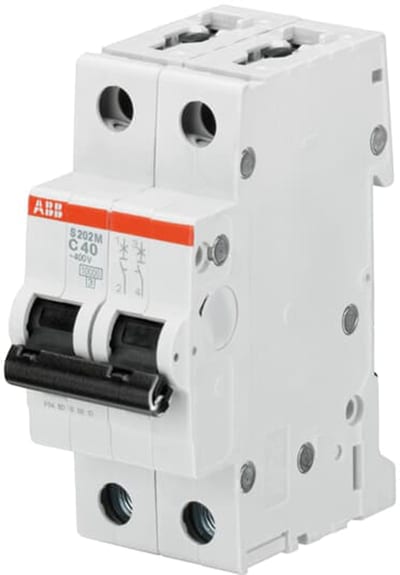

ABB S202M-D50 Miniature Circuit Breaker — 2P, Type D, 50 A, 10 kA
ABB

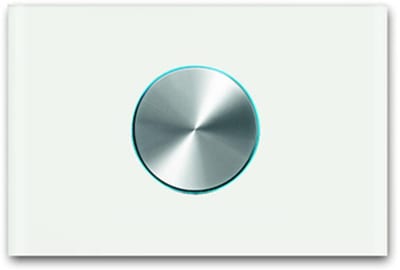

Prion Rotary dimmer 6341-811-101-500
2CKA006310A0170
ABB

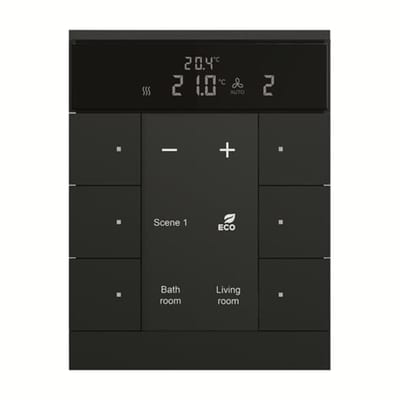

Tenton 3/6V Black MATT SBR/U6.0.1-885
ABB

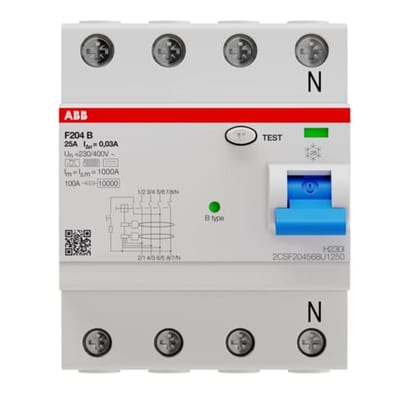

Residual Current Circuit Breaker F204 B-25/0,03 BULK
