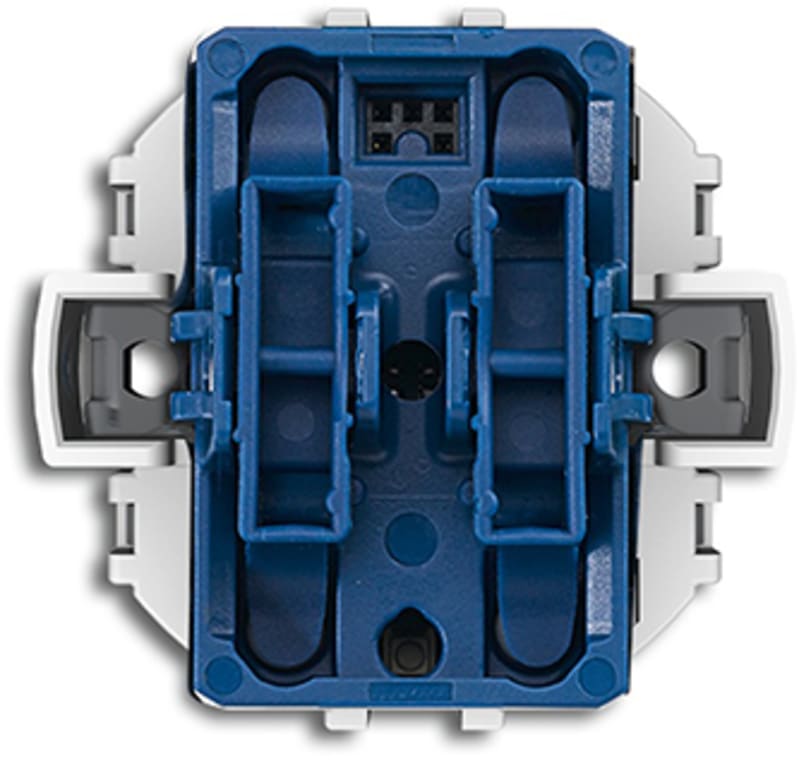

Switch Insert 2/4V KNX 6108/07-AP-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006133A0227 — For contacting conventional 2gang rocker switches. With middle position. For inserting in the ocean surface-mounted housing. Enclosed mounting plate for the following ranges: Busch-Duro 2000® SI/SI Linear, Reflex SI/SI Linear, future® linear, alpha, solo®, Busch-axcent®, carat® and pure stainless steel. The bus can be connected via enclosed terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006133A0227
- EAN / GTIN
- 4011395210987
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Modular Components Included
- Flush Mounted Insert with Mounting Plate
- Ambient Air Temperature
- Operation -25 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001373B8908
- Number of Inputs
- 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Lamp Type
- LED Control light
- Lamp Color
- Red / Green
- Terminal Type
- Bus Connection
- Rated Voltage (U r )
- 24 V
- Auxiliary Voltage AC/DC
- 24 V AC/DC
- Design Range
- ocean; Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha exclusive; alpha nea
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 47 mm
- Built-In Depth ( t 2 )
- 33 mm
- Dimension Diagram
- 2CKA000097E3991
- EPLAN Data
- 9AKK108464A1183
- Declaration of Conformity - CE
- 2CKA100000E1126
- Declaration of Conformity - UKCA
- 2CKA400000E0206
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC002466 - Touch sensor connector for bus system
- eClass
- V11.0 : 27143108
- UNSPSC
- 39121801
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Mounting method
- Flush-mounted
- Width in number of modular spacings
- 1
- Min. depth of built-in installation box
- 33 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395210987
- SAP 1200006526
- Code 8521080
Product Documentation
