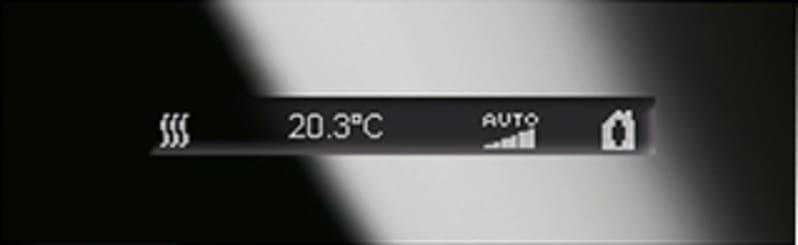

Prion Upper STRIP with RTC 6351/08-825-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006310A0183 — Top end strip for installation on 1gang to 3gang support frame (6346/10-101, 6346/11-101 und 6346/12-101). 10 freely programmable IR channels (blue and/or white) For heating and cooling (PI, PWM or 2-point). For control of up to 5-level ventilation actuators. With manual adjustment of fan levels. Master/slave configuration. With base-load operation. Display of up to 17 functions as text and/or icon. Only in connection with 1-gang rotary control element (6341-xxx-101) and 3-gang control element (6342-xxx-101) possible. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006310A0183
- EAN / GTIN
- 4011395198407
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Mounting Height
- Optimum 1.1 m
- Modular Components Included
- Accessory Cover
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA001373B8687
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Display Type
- LCD
- Screen Type
- Flat
- Design Range
- priOn
- Surface Finishing
- Glossy; Untreated
- Material
- Glass
- Color
- glass black
- Product Net Width
- 107 mm
- Product Net Height
- 34 mm
- Product Net Depth / Length
- 16 mm
- Dimension Diagram
- 2CKA000097E0659
- Screen Size
- 2.72 in
- Declaration of Conformity - CE
- 2CKA100000E1506
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Colour
- Black
- Surface protection
- Untreated
- With display
- Yes
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Bus system LON
- No
- With anti-theft/dismantling protection
- Yes
- Manual set point setting
- Yes
- Parallel-service possible
- Yes
- Presence button
- Yes
- With LED indication
- No
- Transparent
- No
- With local operation
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Class of the temperature control
- I
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- External sensor
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395198407
- SAP 1000731107
- Code 8356187
Product Documentation
