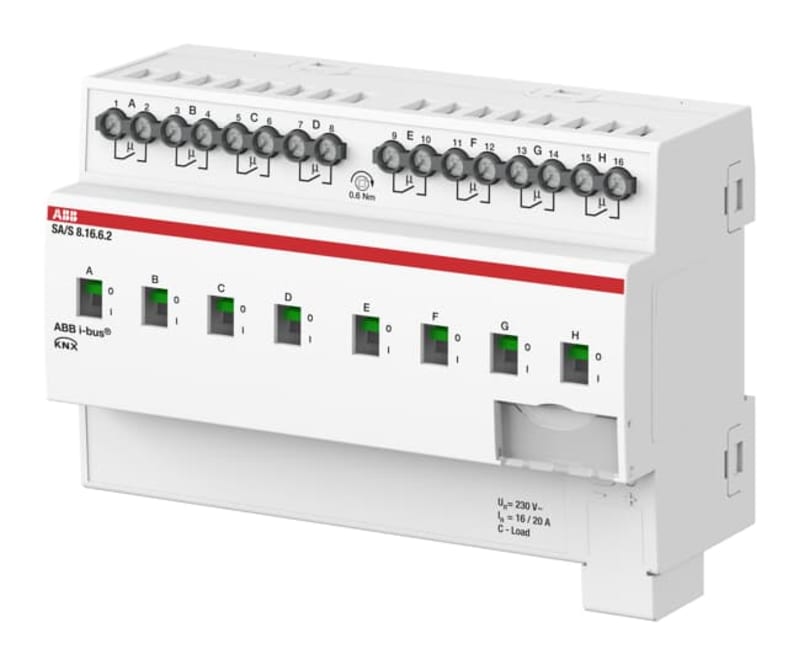

ABB KNX Switch Actuator 8-Channel with Current Detection and Energy Function, 16 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110271R0011 (SA/S8.16.6.2) is an 8-channel KNX binary output for DIN-rail mounting, rated 16/20 A with AX load capability, current detection and an energy metering function. Each channel supports manual override and switching-state indication; all load types (resistive, capacitive, inductive) are permitted up to 3680 W. Power loss 8 W; 8 modular spacings wide (140 mm), IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110271R0011
- EAN / GTIN
- 4016779066433
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941217P0002
- Wiring Diagram
- 9AKK108464A0335
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC505202D0211
- Contact Position Indication
- ON / OFF
- Number of Outputs
- 8
- Number of LEDs
- 1
- Maximum Number of Switching Outputs
- 8
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Suitable for C-Load
- Yes
- Number of Batteries
- 0
- Voltage Range
- 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Rated Current (I n )
- 20 A
- Maximum Switching Current
- 20 A
- Maximum Switching Power
- 3680 W
- Load Type
- Resistive Load; Capacitive Load; Inductive Load
- Power Loss
- 8 W; Total 8 W
- Color
- light grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 140 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072027F0017
- EPLAN Data
- 9AAC189170_EPLAN
- EcoSolutions Profile
- 9AKK108470A2429
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 28.6 %
- Circular Design Principles Lifetime
- 2CKA000073B5454
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Product Durability; Product Modularity; Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
- Offered with Takeback Services
- Take Back for Recycling
- Environmental Product Declaration - EPD
- 9AKK108469A8002
- CB Certificate
- 9AKK107991A3225
- Declaration of Conformity - CE
- 2CDK505248D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0748
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001097 - Switch actuator for bus system
- eClass
- V11.0 : 27143125
- UNSPSC
- 31251516
- IDEA Granular Category Code (IGCC)
- 3268 >> Switch actuator
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 3680 W
- Output power
- 3680 W
- Max. number of switching contacts
- 8
- Max. switching current
- 20 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4016779066433
- SAP 1200490116
- Code 82582040
Product Documentation
