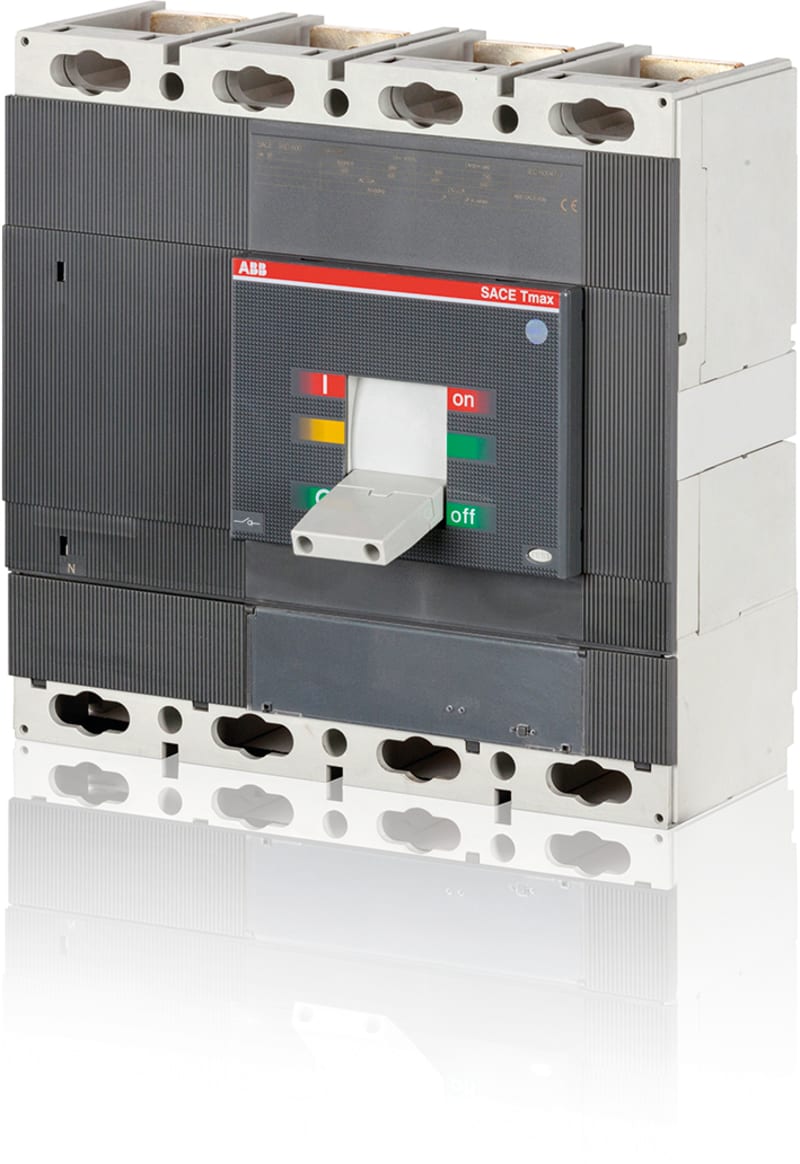

Switch-Disconnector T6D 800 A, 4-Pole, Fixed, Front Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA060346R1 Tmax T6D 800 switch-disconnector, 800 A, 4-pole, fixed version with front terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA060346R1
- EAN / GTIN
- 8015644628147
- Sales unit
- pcs
- Number of poles
- 4P
- Country of Origin
- India
- Product Sales Status
- Active
- Environmental Information
- 9AKK10103A1058; 9AKK108467A6707
- Product Net Width
- 280 mm
- Product Net Height
- 268 mm
- Product Net Depth / Length
- 103.5 mm
- Product Main Type
- SACE Tmax T
- Product Type
- Switch Disconnector
- Suitable For
- T6
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Version
- F
- Mechanical Durability
- 20000 cycle; 120 cycles per hour
- Power Loss
- at Rated Operating Conditions per Pole 32 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Voltage
- 690 V AC; 750 V DC
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 15 A
- Rated Uninterrupted Current (I u )
- 800 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T6
- Terminal Connection Type
- Fixed Circuit-Breakers; Front
- Test Voltage Max (U test )
- 3500 V
- Data Sheet, Technical Information
- 1SDC210015D0201
- Declaration of Conformity - CE
- 9AKK106713A5538
- Instructions and Manuals
- 1SDH000511R0001
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- Object Classification Code
- Q
- UNSPSC
- 39121100
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371403
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 8015644628147
- SAP 1200330583
- Code 82312435
Product Documentation
