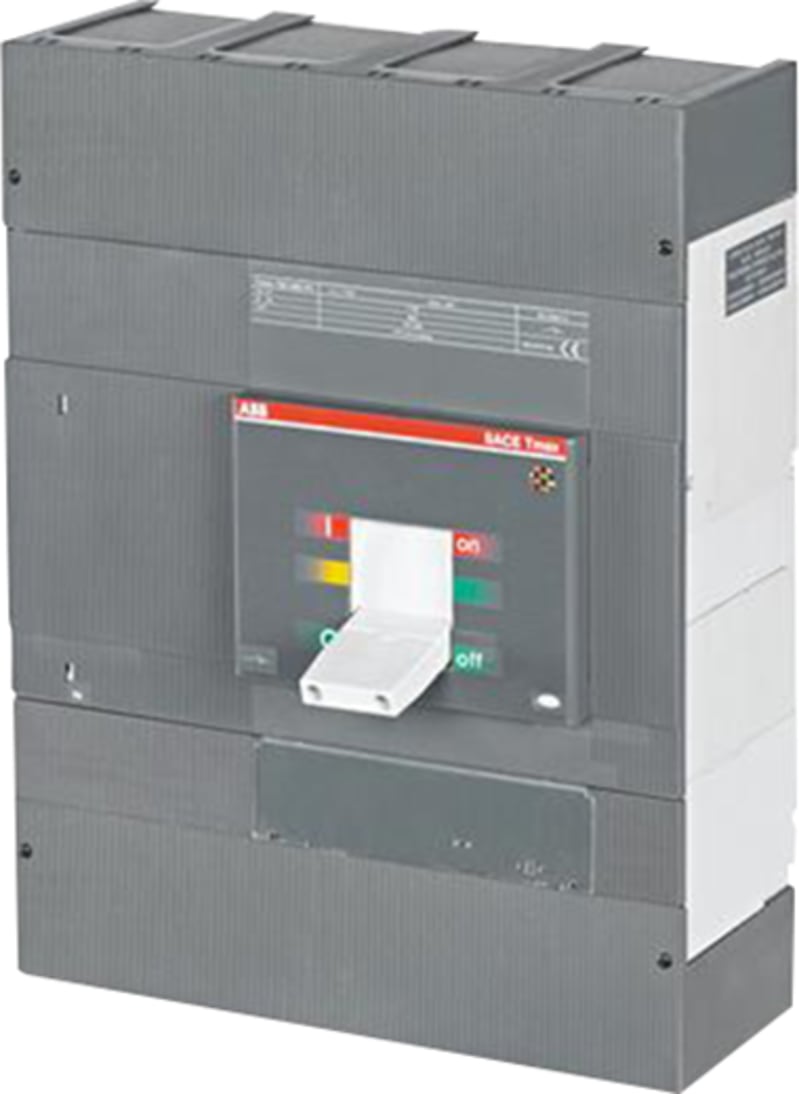

ABB SACE Tmax T6N 630 Moulded-Case Circuit Breaker — LS/In, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax T6N 630 A frame moulded-case circuit breaker (MCCB). 3-pole. Electronic trip unit LS/In (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA060226R1, EAN 8015644626686, ABB/SAP material 1000669169, catalogue code 8683779.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax T6 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- Eff.br 3p T6N 630/630 LS/In
- ABB order code (MPN)
- 1SDA060226R1
- EAN / GTIN
- 8015644626686
- ABB / SAP material no.
- 1000669169
- Frame
- T6 (630 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- LS/In
- Poles
- 3
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644626686
- SAP 1000669169
- Code 8683779
Product Documentation
