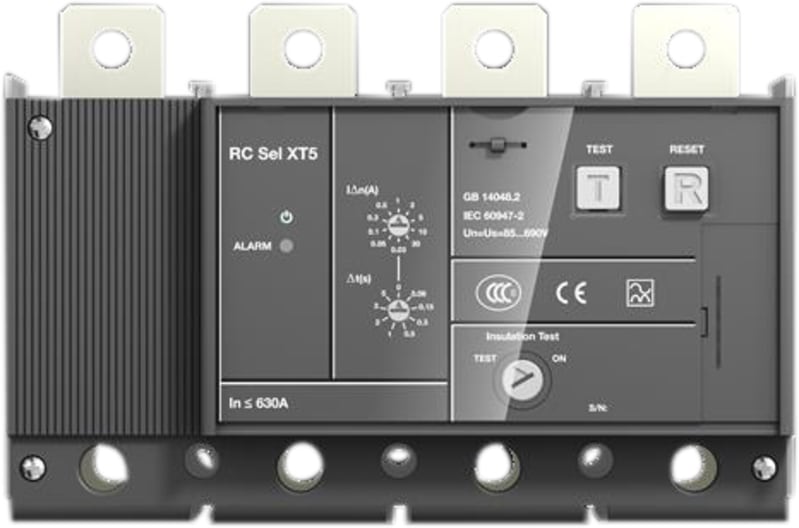

ABB RC Sel Residual Current Release — 4-pole, for Tmax XT5 Moulded-Case Circuit Breaker, Selective
Pricing
Request a quote
We reply within 24 hours
Product Description
The ABB RC Sel x XT5 4p is an RC Sel residual current release for the Tmax XT5 moulded-case circuit breaker. It is an accessory, not a standalone device: it mounts onto the breaker and adds earth-fault protection to the breaker's existing overcurrent release, so an installed XT5 can be given residual current protection without replacing the breaker or altering the busbar work. This version is for 4-pole breakers. It is the selective (RC Sel) type, which trips with a set time delay so that a residual current device downstream clears the fault first and only the faulty circuit is lost — the behaviour wanted at the incomer of a distribution board. The CE declaration for the assembly is the one belonging to the circuit breaker it is fitted to. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.
Technical Specifications
- Manufacturer part number (MPN)
- RC Sel x XT5 4p
- EAN / GTIN
- 8015644072230
- Sales unit
- pcs
- Number of poles
- 4P
- Country of Origin
- India
- Product Sales Status
- Active
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5
- Suitable for Product Class
- SACE Tamx XT
- Configuration Type
- Loose or configurable
- Order Multiple
- 1 piece
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 2TFH000039A1001
- ETIM 9
- EC002498 - Accessories/spare parts for low-voltage switch technology
- IDEA Granular Category Code (IGCC)
- 4878 >> Residual current release for power circuit breaker
- UNSPSC
- 39121601
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371390
- Product family
- ABB Tmax XT residual current release
- Model
- RC Sel
- Device type
- Residual current release (circuit-breaker accessory)
- Fits circuit breaker
- Tmax XT5
- Poles
- 4-pole
- Tripping characteristic
- Selective / time-delayed
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8015644072230
- SAP 1200640002
- Code 83054676
- MPN RC Sel x XT5 4p
- Model RC Sel
- Fits Tmax XT5
