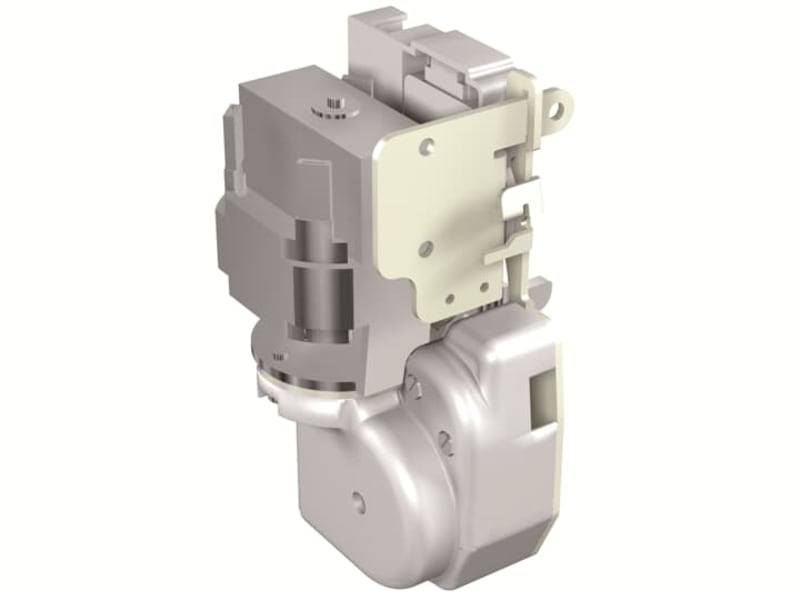

ABB 1SDA104923R1 Geared Motor Operator 380–415 V AC/DC for Tmax XT7M
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA104923R1 is a geared motor operator with stored-energy spring charge (M XT7M) for the SACE Tmax XT7M moulded-case circuit breaker. It rearms the closing spring automatically after each operation, supporting remote open/close cycles at 380–415 V AC or DC. Complies with IEC 60947-2 and UL 489.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA104923R1
- EAN / GTIN
- 8056221027199
- Sales unit
- pcs
- Voltage
- 380-415 V
- Environmental Product Declaration - EPD
- 9AKK108472A3732
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT7M
- Suitable for Product Class
- SACE Tmax XT
- Configuration Type
- Loose or configurable
- Current Type
- AC/DC
- Order Multiple
- 1 piece
- Rated Voltage (U r )
- 380...415 V AC; 380...415 V DC
- Standards
- IEC60947-2; UL489
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002013A1603
- ETIM 9
- EC001030 - Motor operator for power circuit-breaker
- IDEA Granular Category Code (IGCC)
- 4872 >> Motor operator for power circuit-breaker
- UNSPSC
- 39121601
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370412
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221027199
- SAP 1200639894
- Code 83056801
Product Documentation
