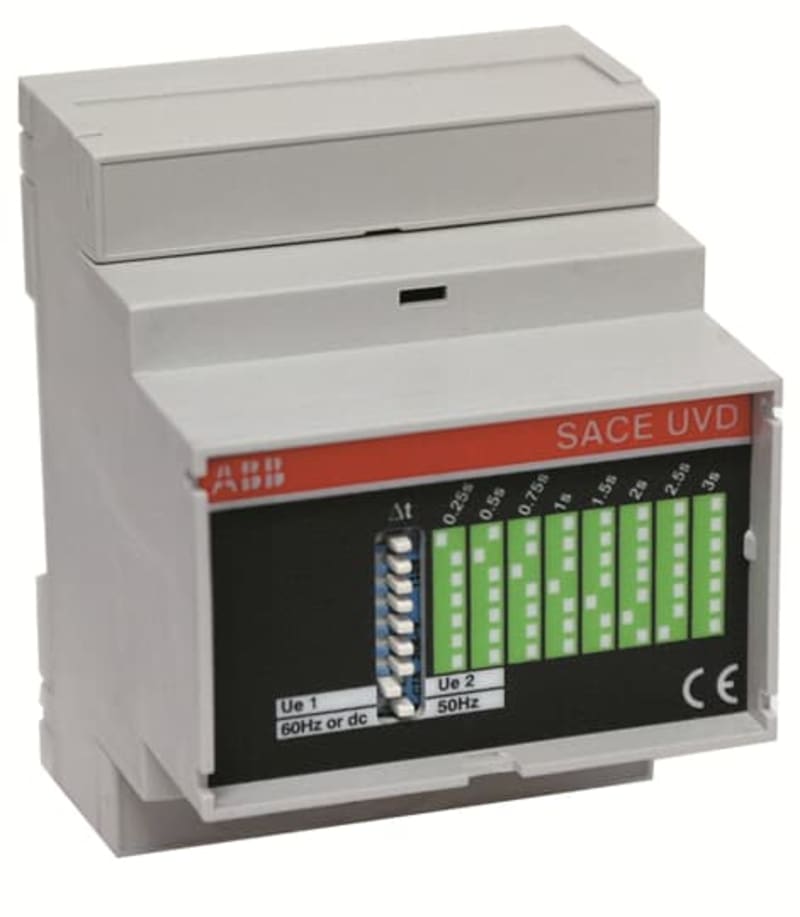

ABB UVD XT5-XT6 Time-Delay Undervoltage Release Coil 48-60 V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA101984R1 is a time-delay undervoltage release (UVD) for use with Tmax XT5 and XT6 moulded-case circuit breakers. Rated voltage 48-60 V AC/DC. Conforms to IEC 60947-2.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA101984R1
- EAN / GTIN
- 8056221020282
- Sales unit
- pcs
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5; XT6
- Suitable for Product Class
- SACE Tamx XT
- Configuration Type
- Loose or configurable
- Order Multiple
- 1 piece
- Rated Voltage (U r )
- 48...60 V AC; 48...60 V DC
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206; 1SDC210200D0206; 1SDC210199D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1603
- ETIM 9
- EC002052 - Time delay under voltage coil
- IDEA Granular Category Code (IGCC)
- 4147 >> Time delay under voltage coil
- UNSPSC
- 39121010
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370426
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221020282
- SAP 1200639869
- Code 83056809
Product Documentation
