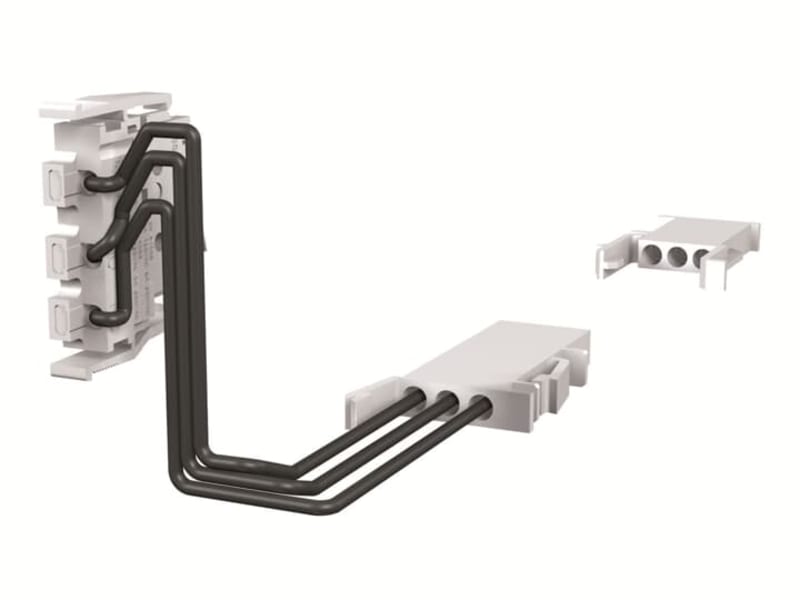

AUX-C 1Q + 1SY 400V AC/DC XT5 W
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA104785R1 — 1 CHANGEOVER CONTACT OPEN-CLOSED + 1 CHANG.FOR TRIP.INDICATION SY V < 400V AC-DC XT5-XT6 CABLED FOR WITHDRAWABLE CIRCUIT-BREAKER XT5.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA104785R1
- EAN / GTIN
- 8056221026871
- Sales unit
- pcs
- Voltage
- 400 V
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5
- Suitable for Product Class
- SACE Tamx XT
- Configuration Type
- Loose or configurable
- Current Type
- AC/DC
- Number of Auxiliary Contacts CO (SPDT)
- 2
- Order Multiple
- 1 piece
- Standards
- IEC60947-2; UL489
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206; 1SDC210200D0206; 1SDC210199D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1610
- ETIM 9
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- UNSPSC
- 39121522
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371302
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221026871
- SAP 1200639534
- Code 83058344
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — TMD 32-320, In=32 A, 4-Pole
1SDA067662R1
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — Ekip In, In=25 A, 3-Pole
1SDA067806R1
ABB
XT5 P FP 630A 3P frame configurable
1SDA112955R1
ABB

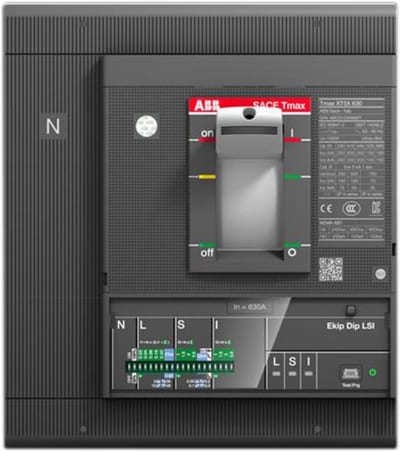

ABB SACE Tmax XT5H 400 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=250 A, 4-Pole
1SDA100530R1
ABB

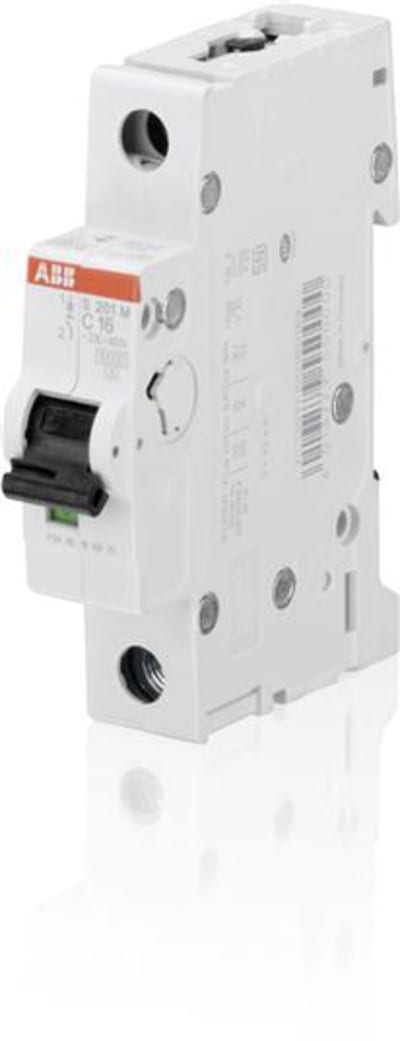

ABB S201M-D10 Miniature Circuit Breaker — 1P, Type D, 10 A, 10 kA
2CDS271001R0101
ABB

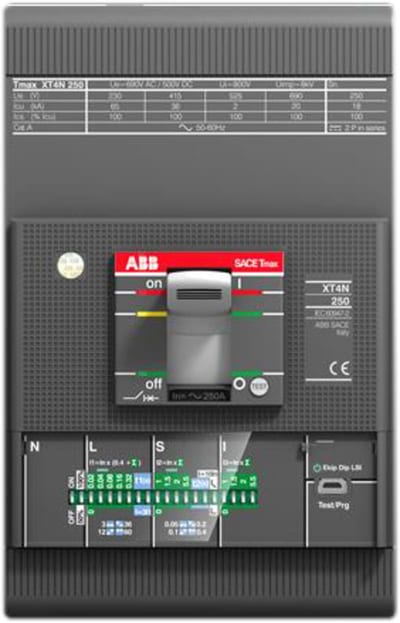

ABB SACE Tmax XT4N 160 Moulded-Case Circuit Breaker — Ekip In, In=160 A, 3-Pole
