ABB SACE Tmax XT7S 800 Moulded-Case Circuit Breaker — Ekip Touch LSI, In=800 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT7S 800 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 800 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Touch LSI (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA101126R1, EAN 8056221014298, ABB/SAP material 1200638802, catalogue code 83052509.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT7 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT7S 800 Ekip Touch LSI In=800A 4p FF
- ABB order code (MPN)
- 1SDA101126R1
- EAN / GTIN
- 8056221014298
- ABB / SAP material no.
- 1200638802
- Frame
- XT7 (800 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- Ekip Touch LSI
- Rated uninterrupted current In
- 800 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221014298
- SAP 1200638802
- Code 83052509
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — TMA 100-1000, In=100 A, 4-Pole
1SDA067667R1
ABB
ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip G Dip LS/In IN1600, In=1600 A, 4-Pole
1SDA101749R1
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMD 20-300, In=20 A, 4-Pole
1SDA067616R1
ABB
ABB 1SL0271A00 Insulating BASE Plate-SIZE 5;INSULATING BASE Plate-SIZE 5
ABB
YU XT5-XT6 110..127 Vac - 110..125 Vdc
1SDA104943R1
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — TMA 50-500, In=50 A, 3-Pole
1SDA068304R1
ABB

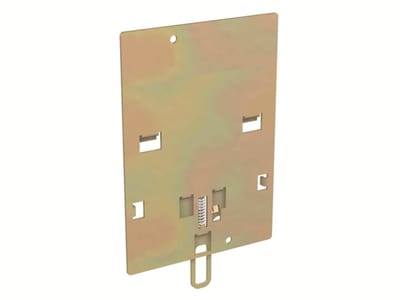

KIT DIN50022 XT3 4P Plate DIN
