ABB SACE Tmax XT7H 1000 Moulded-Case Circuit Breaker — Ekip M Touch LRIU IN1000, In=1000 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT7H 1000 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 1000 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip M Touch LRIU In1000. Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100931R1, EAN 8056221009850, ABB/SAP material 1200638577, catalogue code 83054528.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT7 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT7H 1000 Ekip M Touch LRIU In1000 3p FF
- ABB order code (MPN)
- 1SDA100931R1
- EAN / GTIN
- 8056221009850
- ABB / SAP material no.
- 1200638577
- Frame
- XT7 (1000 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- Ekip M Touch LRIU In1000
- Rated uninterrupted current In
- 1000 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221009850
- SAP 1200638577
- Code 83054528
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMD 6,3-63, In=6.3 A, 4-Pole
1SDA067611R1
ABB
Plinth TZG105 50X300X225MM
2CPX010571R9999
ABB
ABB INNER DOOR SIZE 1 Gemini IP66 Insulating switchboards accessories 1SL0251A00
ABB

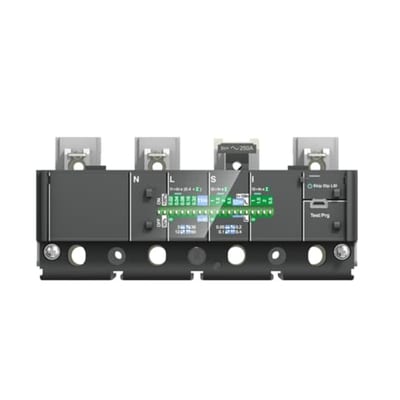

Ekip in In=100A XT4 4P
1SDA067525R1
ABB

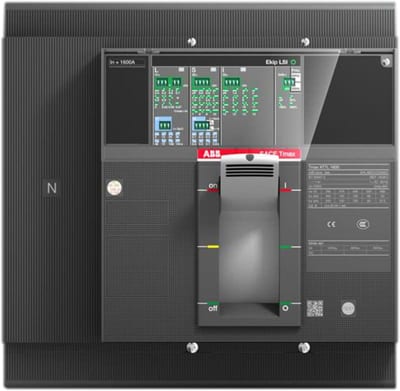

ABB SACE Tmax XT7S 1250 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1250 A, 4-Pole
1SDA101120R1
ABB

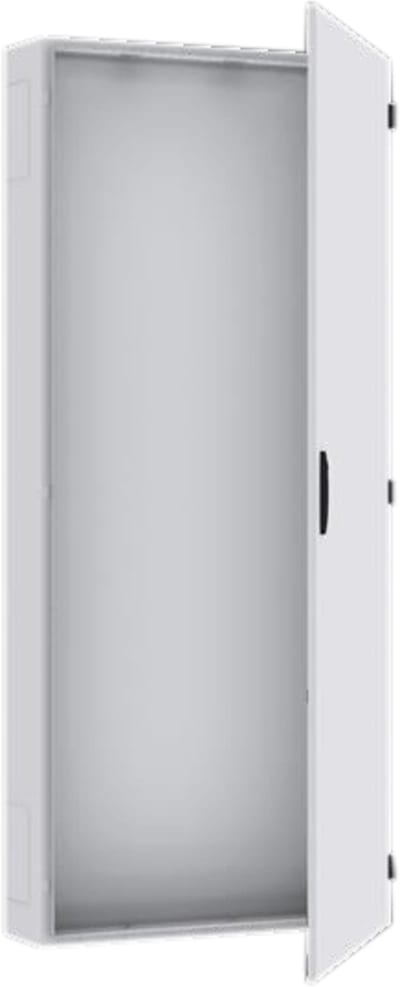

Floor-Standing Cabinet TL112G 1850X300X275MM IP55
2CPX010100R9999
ABB
Ekip M-In In=100A XT2 3P
1SDA067327R1
ABB

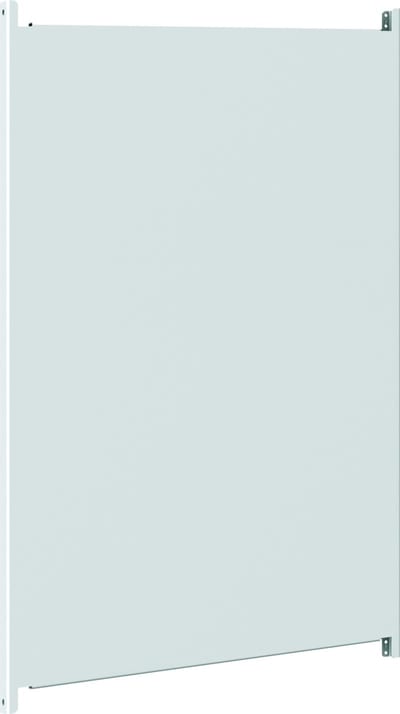

Mounting Plate TZM404 600X996X2MM
