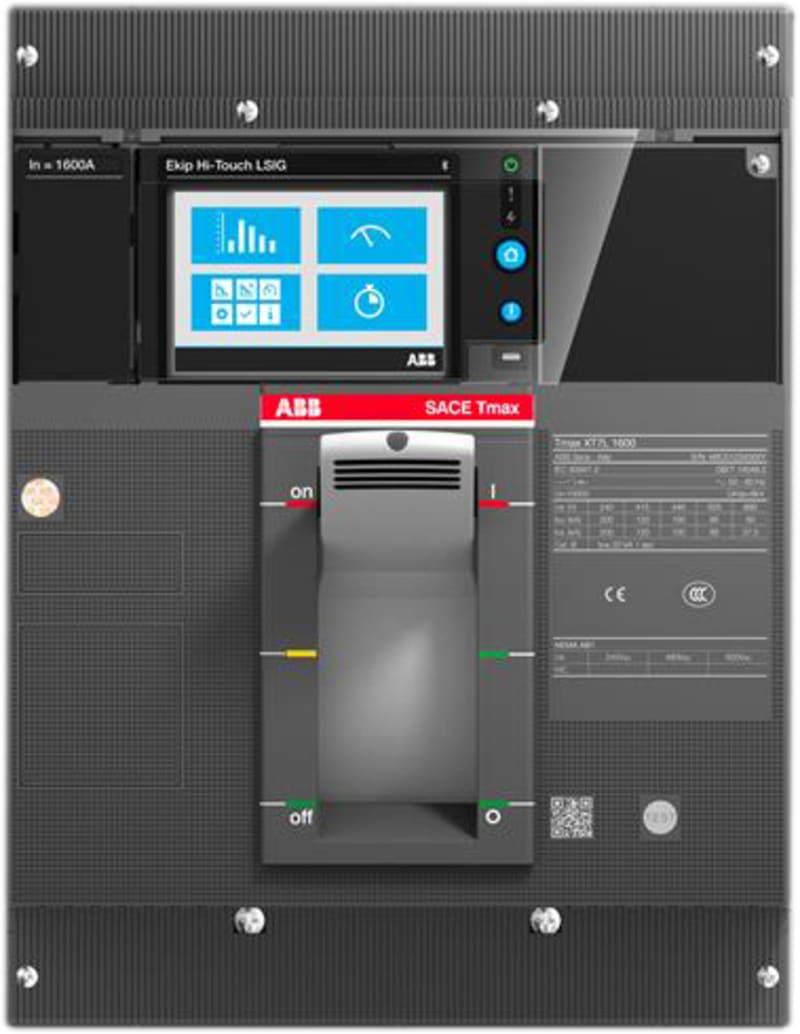

ABB SACE Tmax XT7S 1600 Moulded-Case Circuit Breaker — Ekip M Touch LRIU IN1600, In=1600 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT7S 1600 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 1600 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip M Touch LRIU In1600. Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100869R1, EAN 8056221009232, ABB/SAP material 1200638497, catalogue code 83054379.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT7 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT7S 1600 Ekip M Touch LRIU In1600 3p FF
- ABB order code (MPN)
- 1SDA100869R1
- EAN / GTIN
- 8056221009232
- ABB / SAP material no.
- 1200638497
- Frame
- XT7 (1600 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- Ekip M Touch LRIU In1600
- Rated uninterrupted current In
- 1600 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221009232
- SAP 1200638497
- Code 83054379
