ABB SACE Tmax XT6H 800 Moulded-Case Circuit Breaker — TMA 800-8000, In=800 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description

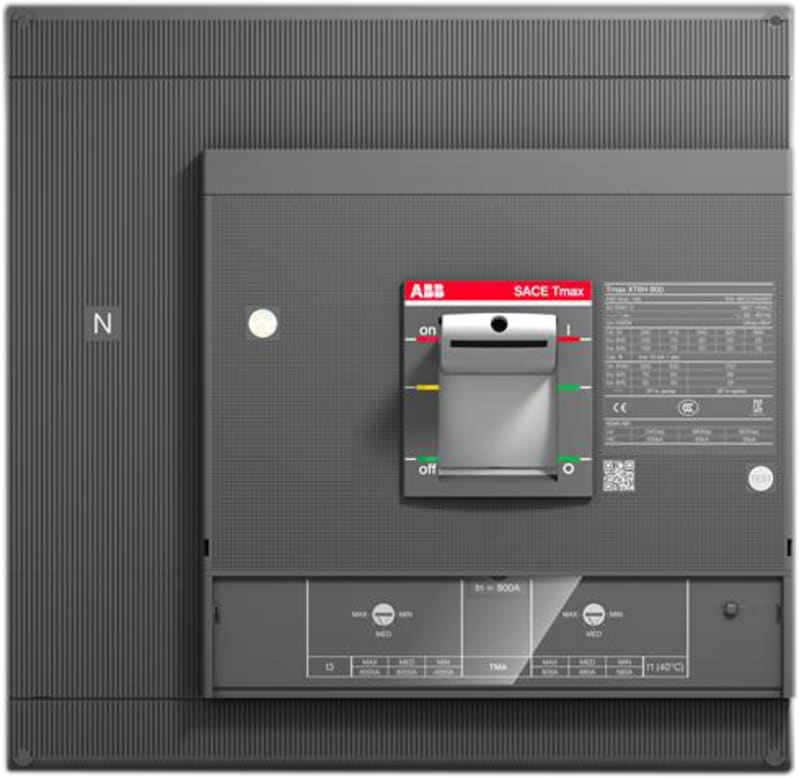

ABB SACE Tmax XT6H 800 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 800 A, 4-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMA 800-8000 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100775R1, EAN 8056221008297, ABB/SAP material 1200638546, catalogue code 83054396.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT6 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT6H 800 TMA 800-8000 4p FF In
- ABB order code (MPN)
- 1SDA100775R1
- EAN / GTIN
- 8056221008297
- ABB / SAP material no.
- 1200638546
- Frame
- XT6 (800 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- TMA 800-8000
- Rated uninterrupted current In
- 800 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221008297
- SAP 1200638546
- Code 83054396
