ABB SACE Tmax XT5H 400 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=320 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5H 400 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 320 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Dip LS/In (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100527R1, EAN 8056221006033, ABB/SAP material 1200638318, catalogue code 83052029.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5H 400 Ekip Dip LS/In In=320 4p FF
- ABB order code (MPN)
- 1SDA100527R1
- EAN / GTIN
- 8056221006033
- ABB / SAP material no.
- 1200638318
- Frame
- XT5 (400 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- Ekip Dip LS/In
- Rated uninterrupted current In
- 320 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221006033
- SAP 1200638318
- Code 83052029
Product Documentation
More from ABB
ABB
Ekip LS/In In=100A XT4 3P
1SDA067500R1
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — TMD 1,6-16, In=1.6 A, 4-Pole
1SDA067561R1
ABB
RHL XT5-XT6K.LO.RONIS EQ.FEL.B1228RHXFLD
1SDA105083R1
ABB
ABB S403-C2 Miniature Circuit Breaker — 3P, Type C, 2 A, 10 kA 2CCS573001R0024
ABB
ABB INNER DOOR-SIZE 3 Gemini IP66 Insulating switchboards accessories 1SL0253A00
ABB

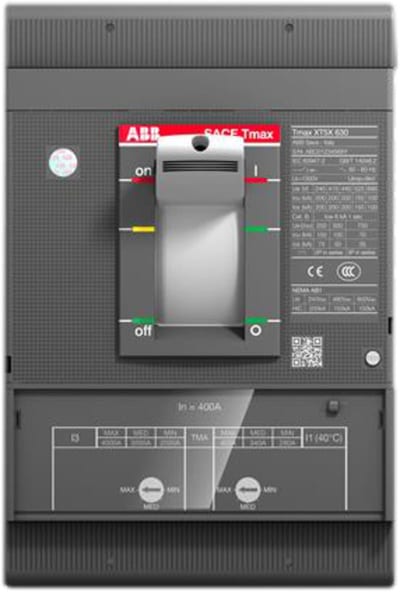

ABB SACE Tmax XT5H 400 Moulded-Case Circuit Breaker — In=2000 A, 3-Pole
1SDA100511R1
ABB

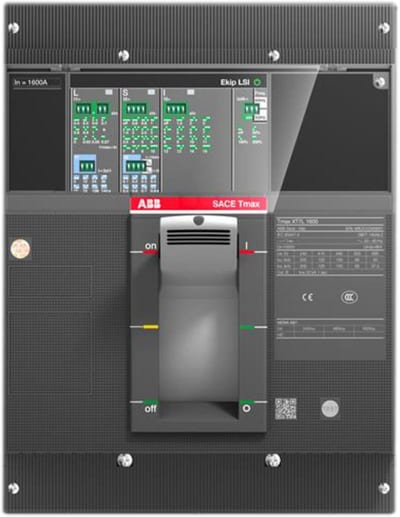

ABB SACE Tmax XT7L 1250 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1250 A, 3-Pole
1SDA100960R1
ABB

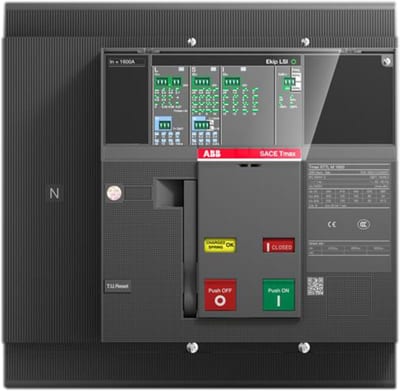

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1250 A, 4-Pole
