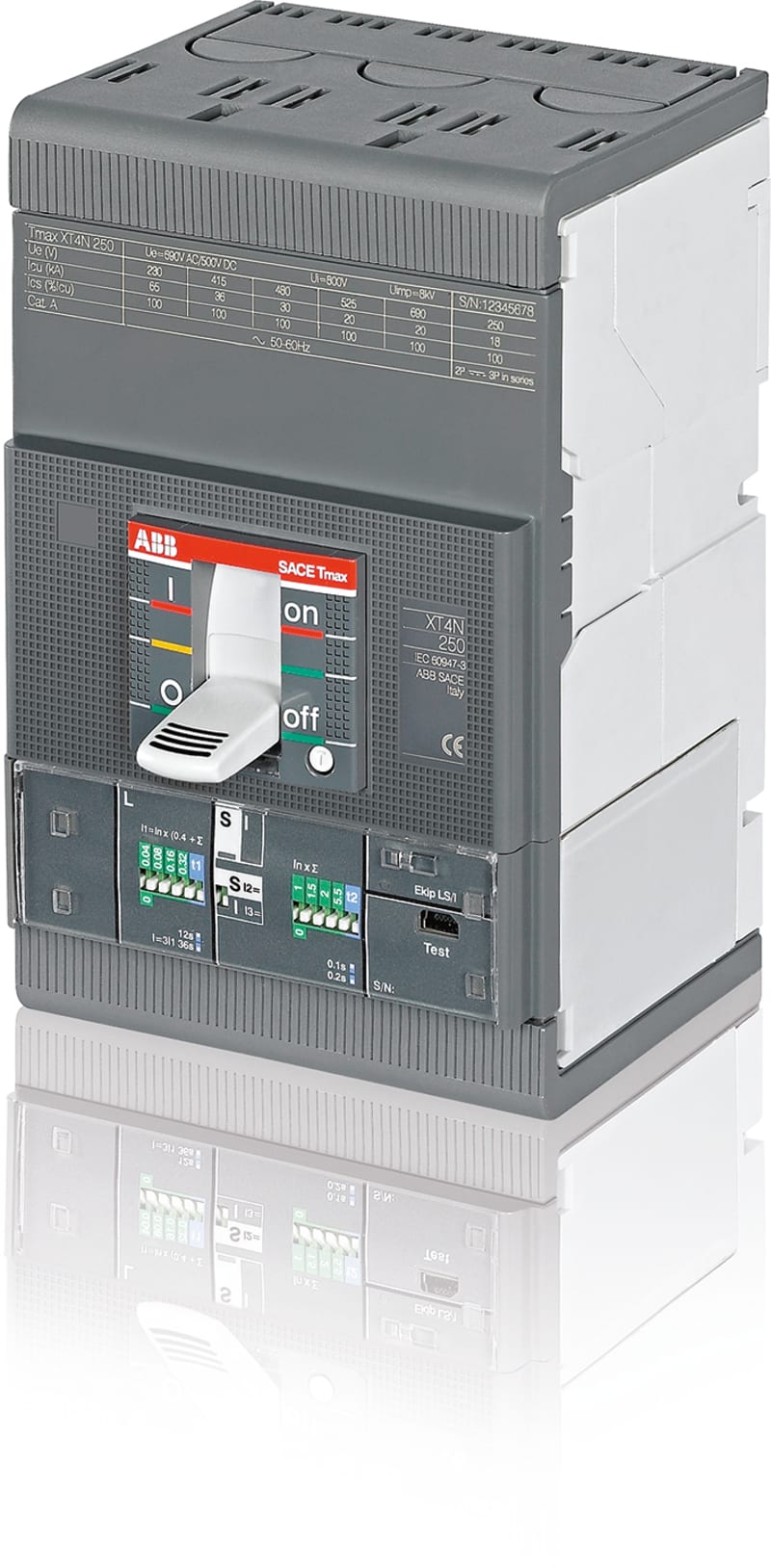

ABB SACE Tmax XT4H 250 Moulded-Case Circuit Breaker — Ekip LS/In, In=250 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT4H 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 250 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip LS/In (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068515R1, EAN 8015644024215, ABB/SAP material 1200281506, catalogue code 82249891.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT4 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT4H 250 Ekip LS/In In=250A 3p FF
- ABB order code (MPN)
- 1SDA068515R1
- EAN / GTIN
- 8015644024215
- ABB / SAP material no.
- 1200281506
- Frame
- XT4 (250 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- Ekip LS/In
- Rated uninterrupted current In
- 250 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644024215
- SAP 1200281506
- Code 82249891
