ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — TMD 16-300, In=16 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT4L 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 16 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD 16-300 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class L; rated ultimate short-circuit breaking capacity Icu = 120 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068365R1, EAN 8015644022716, ABB/SAP material 1200637831, catalogue code 83057298.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT4 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT4L 160 TMD 16-300 3p FF
- ABB order code (MPN)
- 1SDA068365R1
- EAN / GTIN
- 8015644022716
- ABB / SAP material no.
- 1200637831
- Frame
- XT4 (160 A frame)
- Breaking-capacity class
- L
- Rated ultimate breaking capacity Icu (415 V AC)
- 120 kA
- Trip unit
- TMD 16-300
- Rated uninterrupted current In
- 16 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644022716
- SAP 1200637831
- Code 83057298
Product Documentation
More from ABB
ABB
ABB S203M-K15 Miniature Circuit Breaker — 3P, Type K, 15 A, 10 kA
2CDS273061R0457
ABB
ABB SACE Tmax XT7L 1000 Moulded-Case Circuit Breaker — Ekip M Dip In, In=1000 A, 3-Pole
1SDA100991R1
ABB
RHL XT1..XT4 KEY LOCK Ronis EQ. FEL. D
1SDA066621R1
ABB
ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=800 A, 4-Pole
1SDA100734R1
ABB
ABB 1SDA102022R1 Rating PLUG In=800A XT7-XT7M EKIP DIP LSI-LSIG EKIP Touch + RC (INSTALL.) IEC
ABB
Impressivo In. Telecom Box FOR 22,5mm Aluminium
2CKA001724A4261
ABB
MBM115 Mounting plate module
2CPX041719R9999
ABB

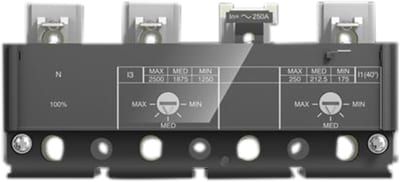

TMA 250-2500 XT4 4P (1SDA067485R1)
