ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — TMD 160-1600, In=160 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT3S 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 160 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD 160-1600 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. EAN 8015644021252, ABB/SAP material 1200637931, catalogue code 83054870.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT3 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT3S 250 TMD 160-1600 3p FF
- EAN / GTIN
- 8015644021252
- ABB / SAP material no.
- 1200637931
- Frame
- XT3 (250 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- TMD 160-1600
- Rated uninterrupted current In
- 160 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644021252
- SAP 1200637931
- Code 83054870
Product Documentation
More from ABB
ABB
ABB S402-C20 Miniature Circuit Breaker — 2P, Type C, 20 A, 10 kA 2CCS572001R1204
ABB
ABB SACE Tmax XT4H 160 Moulded-Case Circuit Breaker — MA 32 Im=160, In=32 A, 3-Pole
1SDA068444R1
ABB
Safety Switch OTA200P3B
1SCA142587R1001
ABB
Cable UMCIO-CAB.030 (1SAJ691000R0001)
ABB
ABB S201M-C40 Miniature Circuit Breaker — 1P, Type C, 40 A, 10 kA
2CDS271061R0404
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — TMA 160-1600, In=160 A, 3-Pole
1SDA067692R1
ABB

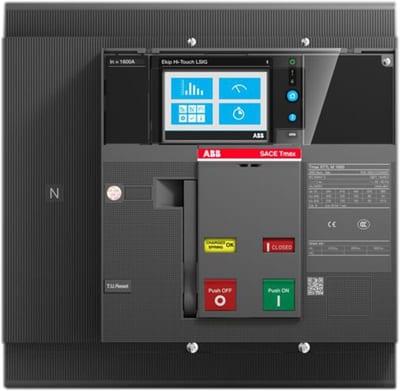

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI, In=1250 A, 4-Pole
1SDA101796R1
ABB

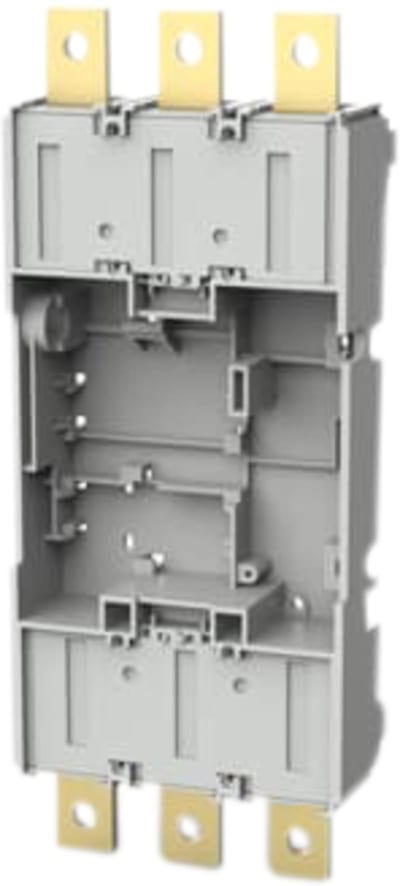

XT5 P FP 400A 3P HR HR IEC
