ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — TMD 63-630, In=63 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT3S 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 63 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD 63-630 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068215R1, EAN 8015644021214, ABB/SAP material 1200637960, catalogue code 83054906.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT3 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT3S 250 TMD 63-630 3p FF
- ABB order code (MPN)
- 1SDA068215R1
- EAN / GTIN
- 8015644021214
- ABB / SAP material no.
- 1200637960
- Frame
- XT3 (250 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- TMD 63-630
- Rated uninterrupted current In
- 63 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644021214
- SAP 1200637960
- Code 83054906
Product Documentation
More from ABB
ABB
ABB GMA1SL0456A00 RAIN HOOD - SIZE 6 Gemini IP66 Insulating switchboards accessories
ABB
Residual Current Circuit Breaker F204 A 80A/30MA
2CSF204101R1800
ABB
XT5 W FP 400A 3P frame configurable
1SDA112957R1
ABB

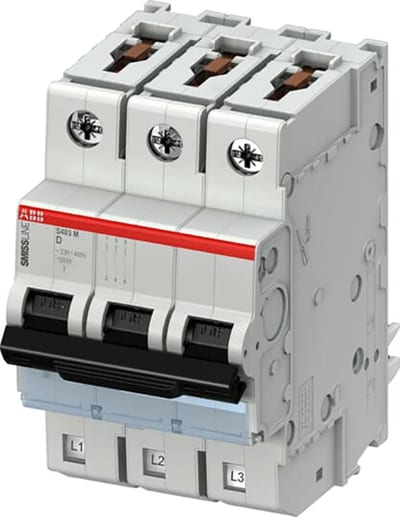

ABB S403-D40 Miniature Circuit Breaker — 3P, Type D, 40 A, 10 kA 2CCS573001R0401
