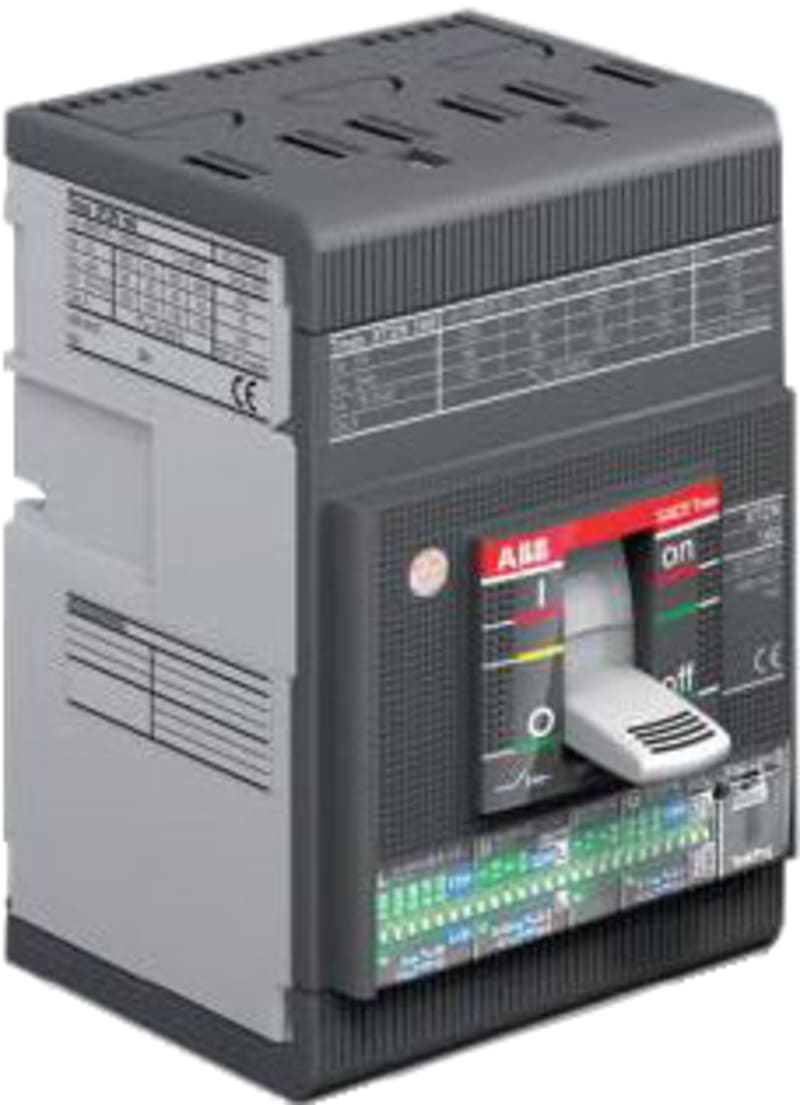

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LSI, In=10 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2N 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 10 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip LSI (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067067R1, EAN 8015644009717, ABB/SAP material 1000486473, catalogue code 8798831.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2N 160 Ekip LSI In=10A 3p FF
- ABB order code (MPN)
- 1SDA067067R1
- EAN / GTIN
- 8015644009717
- ABB / SAP material no.
- 1000486473
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- Ekip LSI
- Rated uninterrupted current In
- 10 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644009717
- SAP 1000486473
- Code 8798831
Product Documentation
More from ABB
ABB
Ekip LSI In=160A XT2 3P
1SDA067309R1
ABB
Universaladapter ZLS971N
ABB
ABB 1SDA066423R1 1 Changeover Contacts OPEN-Closed V <(><<)> 24V DC XT1..XT4
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — In=160 A, 3-Pole 1SDA067739R1
ABB
ABB SACE Tmax XT5H 400 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=320 A, 3-Pole
1SDA100493R1
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=25 A, 3-Pole
1SDA067858R1
ABB
ABB SACE Tmax XT1C 160 Moulded-Case Circuit Breaker — TMD R63, In=63 A, 3-Pole
1SDA067395R1
ABB
ABB S201M-C6 Miniature Circuit Breaker — 1P, Type C, 6 A, 10 kA
2CDS271061R0064
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA067067R1?
- 1SDA067067R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA067067R1.
- What is the HS code for 1SDA067067R1?
- The customs tariff (HS) code for 1SDA067067R1 is 8536.20.
- Who manufactures 1SDA067067R1?
- 1SDA067067R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA067067R1?
- Yes — the 1SDA067067R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA067067R1?
- The minimum order quantity is 1.
- Is 1SDA067067R1 available?
- Yes — 1SDA067067R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
