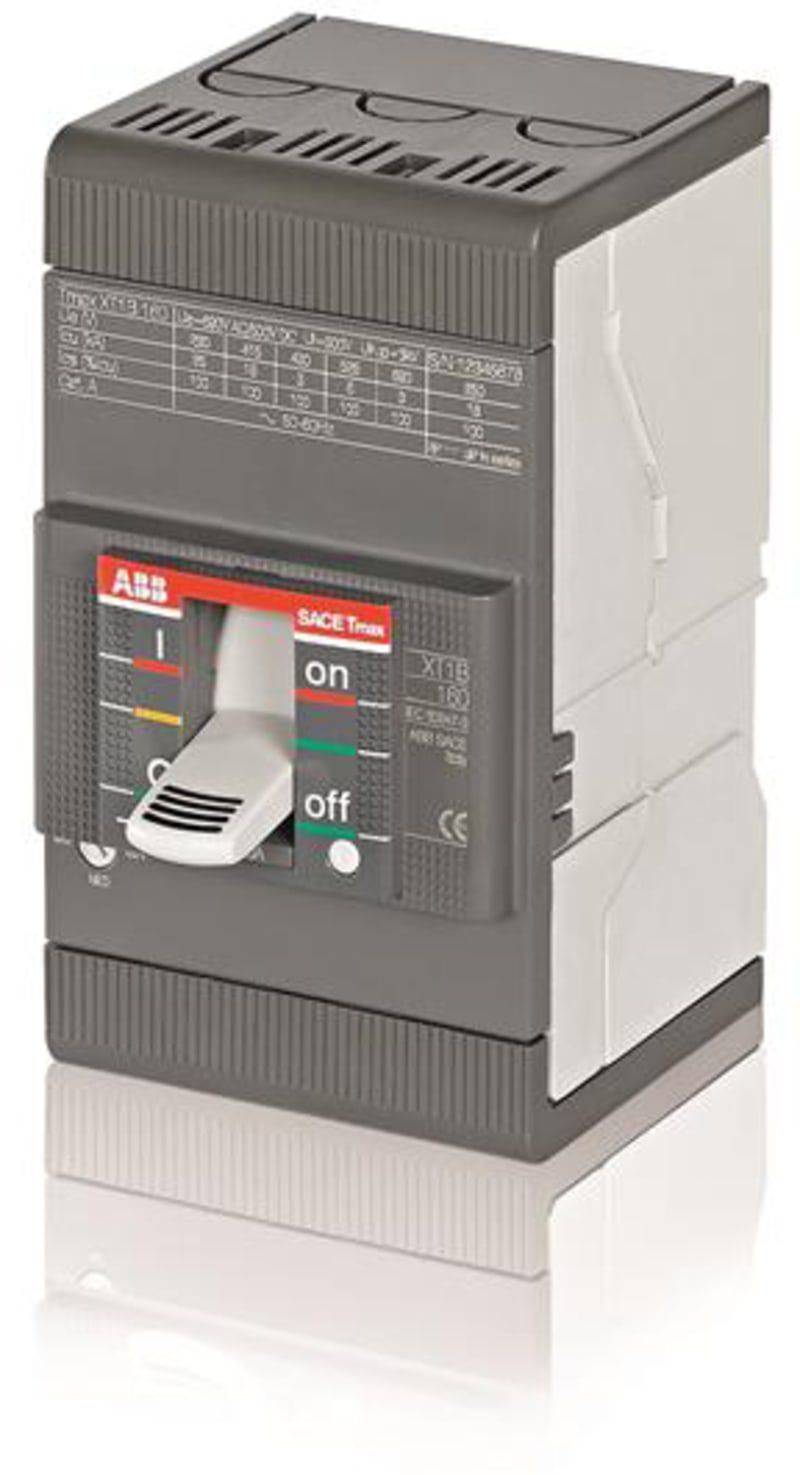

ABB 1SDA068208R1 Switch-Disconnector TMAX XT1D 160 Fixed Three-POLE WITH Front Terminals
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA068208R1 Switch-Disconnector TMAX XT1D 160 Fixed Three-POLE WITH Front Terminals is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Country of Origin: India; Product Sales Status: Active; ABB EcoSolutions: Yes; Extended Product Lifetime: Product Modularity; Environmental Information: 9AKK108467A6707.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA068208R1
- EAN / GTIN
- 8015644021047
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- ABB EcoSolutions
- Yes
- ABB Site Meeting Group Waste To Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions
- 9AKK108468A2347
- Environmental Product Declaration - EPD
- 9AKK108468A1890; 9AKK108468A7793
- Extended Product Lifetime
- Product Modularity
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 55.9 %
- Environmental Information
- 9AKK108467A6707
- Product Net Width
- 76.2 mm
- Product Net Height
- 130 mm
- Product Net Depth / Length
- 70 mm
- Product Main Type
- SACE Tmax XT
- Product Type
- Switch Disconnector
- Version
- F
- CAD Dimensional Drawing
- 1SDH001295R0080
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour; 8000 cycle
- Mechanical Durability
- 240 cycles per hour; 25000 cycle
- Number of Poles
- 3P
- Opening Time
- CB with SOR 30 ms; CB with UVR 30 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 15 W
- Rated Current (I n )
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 800 V
- Rated Operational Voltage
- 690 V AC; 500 V DC
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 2 kA
- Rated Uninterrupted Current (I u )
- 160 A
- Recommended Screw Driver
- Main Circuit M6
- Short-Circuit Performance Level
- D
- Standards
- IEC60947-2
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- ATEX Certificate
- No certification needed
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- 9AKK106713A5532
- UL Certificate
- No certification needed
- VDE Certificate
- No certification needed
- Dimension Diagram
- 1SDH000719R0100
- Mechanical Drawings
- 1SDH000719R0100
- Wiring Diagram
- 1SDM000068R0001
- Instructions and Manuals
- 1SDH000719R0001
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- Object Classification Code
- Q
- UNSPSC
- 39120000
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371403
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 8015644021047
- SAP 1000792094
- Code 81406139
Product Documentation
More from ABB
ABB
CMS-202DR Sensor 25mm 40A DIN
2CCA880134R0001
ABB
ABB S204M-C40 Miniature Circuit Breaker — 4P, Type C, 40 A, 10 kA
2CDS274061R0404
ABB
ABB S401-Z32 Miniature Circuit Breaker — 1P, Type Z, 32 A, 10 kA
2CCS571001R1328
ABB
ABB S202M-C40 Miniature Circuit Breaker — 2P, Type C, 40 A, 10 kA
2CDS272061R0404
ABB
KIT MC CuAl 6X2.5...35MM2 XT1 8 Pcs
1SDA066924R1
ABB
ABB 1SDA073737R1 Current Sensor FOR External Neutral E2.2 2500A
ABB
ABB 4-Pole, front operated, base mounted switch-disconnector with protected clamp terminals, handle and shaft are not included 1SCA135135R1001
ABB
ABB 1789 KI-84 Impressivo Switch Rocker with Bell Symbol, White
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA068208R1?
- 1SDA068208R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA068208R1.
- What is the HS code for 1SDA068208R1?
- The customs tariff (HS) code for 1SDA068208R1 is 8536.20.
- Who manufactures 1SDA068208R1?
- 1SDA068208R1 is a ABB product in the Switchgear & Protection range.
- Is a datasheet available for 1SDA068208R1?
- Yes — the 1SDA068208R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA068208R1?
- The minimum order quantity is 1.
- Is 1SDA068208R1 available?
- Yes — 1SDA068208R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
