ABB SACE Tmax XT1N 160 Moulded-Case Circuit Breaker — TMD 50-500, In=50 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT1N 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 50 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD 50-500 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. EAN 8015644013073, ABB/SAP material 1000488009, catalogue code 8601015.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT1 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT1N 160 TMD 50-500 3p FF
- EAN / GTIN
- 8015644013073
- ABB / SAP material no.
- 1000488009
- Frame
- XT1 (160 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- TMD 50-500
- Rated uninterrupted current In
- 50 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644013073
- SAP 1000488009
- Code 8601015
Product Documentation
More from ABB
ABB

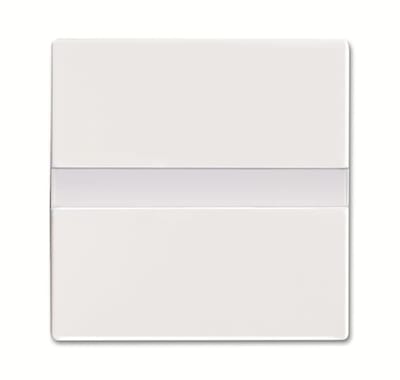

FLEX Front Komfortswitch White
64765-84-500
ABB

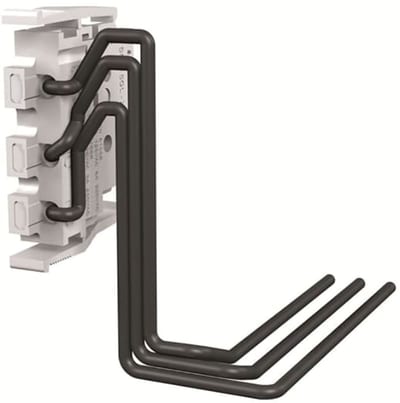

AUX-C 2Q+1SY 250 V XT1..XT4F/P
AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
ABB

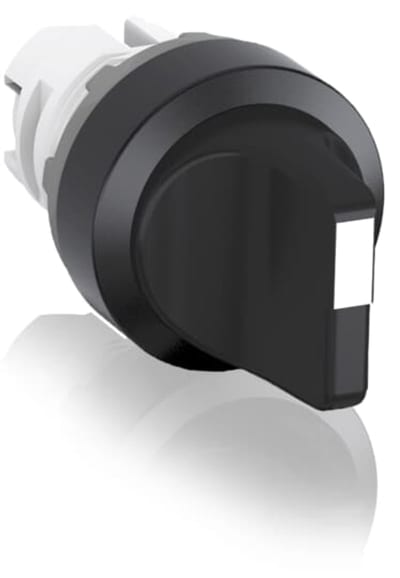

Selector switch 2 pos.A-C. So
M2SS2-10B
ABB

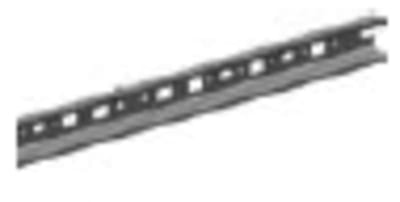

ED74 DIN-rail 35X600MM
