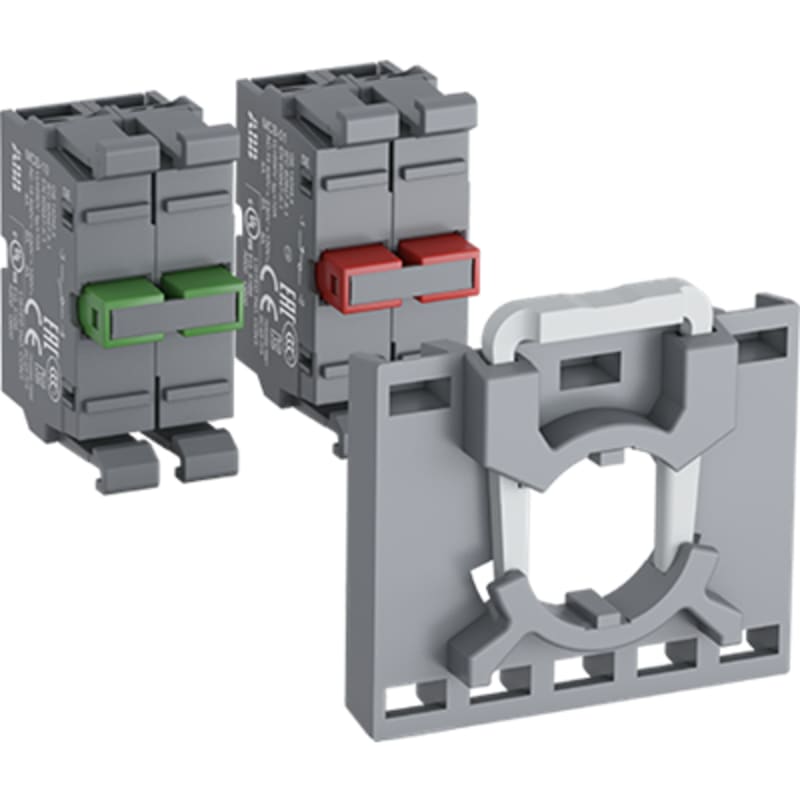

ABB MCBH-11 Contact Block Holder 1NO+1NC Front Mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB MCBH-11 is a single contact block with front mounting: maintained (non-illuminated), silver (Ag) contacts, 1 NO + 1 NC, rated 690 V. Part of ABB's modular plastic pushbutton range with self-cleaning contacts for reliable maintenance-free operation and 10 million mechanical operations. Screw-clamp terminals with 0.9 Nm tightening torque; 3-position holder function suitable for the MP1, MP2 and MP3 series.
Technical Specifications
- Manufacturer part number (MPN)
- MCBH-11
- EAN / GTIN
- 7320500307519
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Replaced
- Replacement Part ID
- 3AUA0000120578
- Storage Location
- 4001
- Technical Information
- .
- Product Net Width
- 0.03 m
- Product Net Height
- 0.048 m
- Product Net Depth / Length
- 0.036 m
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -40 ... +85 °C
- Illumination
- Non-illuminated
- Function
- With 3-position holder
- Mounting Type
- Front mounting
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Pollution Degree
- 3
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Operational Voltage
- Maximum 690 V
- Rated Operational Current DC-13 (I e )
- (24 V) 5 A; (125 V) 0.55 A
- Rated Operational Current AC-15 (I e )
- (230 V AC) 6 A
- Power Loss
- Maximum 5 W
- Mechanical Durability
- 10 million
- Connecting Capacity
- Flexible with Ferrule 1 x 0.75...2.5 mm²; Flexible with Ferrule 2 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²; Flexible 1 x 0.75 ... 2.5 mm²; Flexible 2 x 0.75 ... 2.5 mm²; Solid 1 x 0.75...2.5 mm²; Solid 2 x 0.75...2.5 mm²
- Connection Type
- Screw Clamp
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.9 N·m
- Wire Stripping Length
- 8 mm
- Suitable For
- MP1; MP2; MP3; MP4; MPD1; MPD2; MPD3; MPD4; MPD5; MPD11; MPD12; MPD13; MPD14; MPD15; MPD16; MPM1; MPM2; KP6; MPET3; MPEP3; MPEK3; MPET4; MPEP4; MPEK4; MPMT3; MPMT4; MPMP3; MPMP4; M2SS1; M2SS2; M2SS3; M2SS4; M2SS5; M2SS6; M3SS1; M3SS2; M3SS3; M3SS4; M3SS5; M3SS6; M3SS7; M3SS8; M3SSC1; M3SSC2; M3SSC3; M3SSC4; M3SSC5; M3SSC6; M3SSC7; M3SSC8; M2SSK1; M2SSK2; M2SSK3; M3SSK1; M3SSK2; M3SSK3; MTS1; MTS2; MTS3; MJS1; MJS2; MJS5; MJS6; MJS7; MJS8; MJS11; MJS12
- Suitable for Product Class
- Pilot Devices
- Connecting Capacity UL/CSA
- 1x 18...14 AWG; 2x 18...14 AWG
- Degree of Protection
- Terminals IP20
- CQC Certificate
- CQC2005010304154103
- cULus Certificate
- UL-E76003-20140513
- Declaration of Conformity - CCC
- 2020980305001528
- Declaration of Conformity - CE
- 2CMT2015-005452
- Declaration of Conformity - UKCA
- 2CMT2020-006121
- Object Classification Code
- S
- ETIM 6
- EC000041 - Auxiliary contact block
- eClass
- V11.0 : 27371302
- UNSPSC
- 39121522
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- E-Number (Finland)
- 2339073
- E-Number (Norway)
- 4372828
- E-Number (Sweden)
- 3714026
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7320500307519
- SAP 1000222875
- Code 81118865
