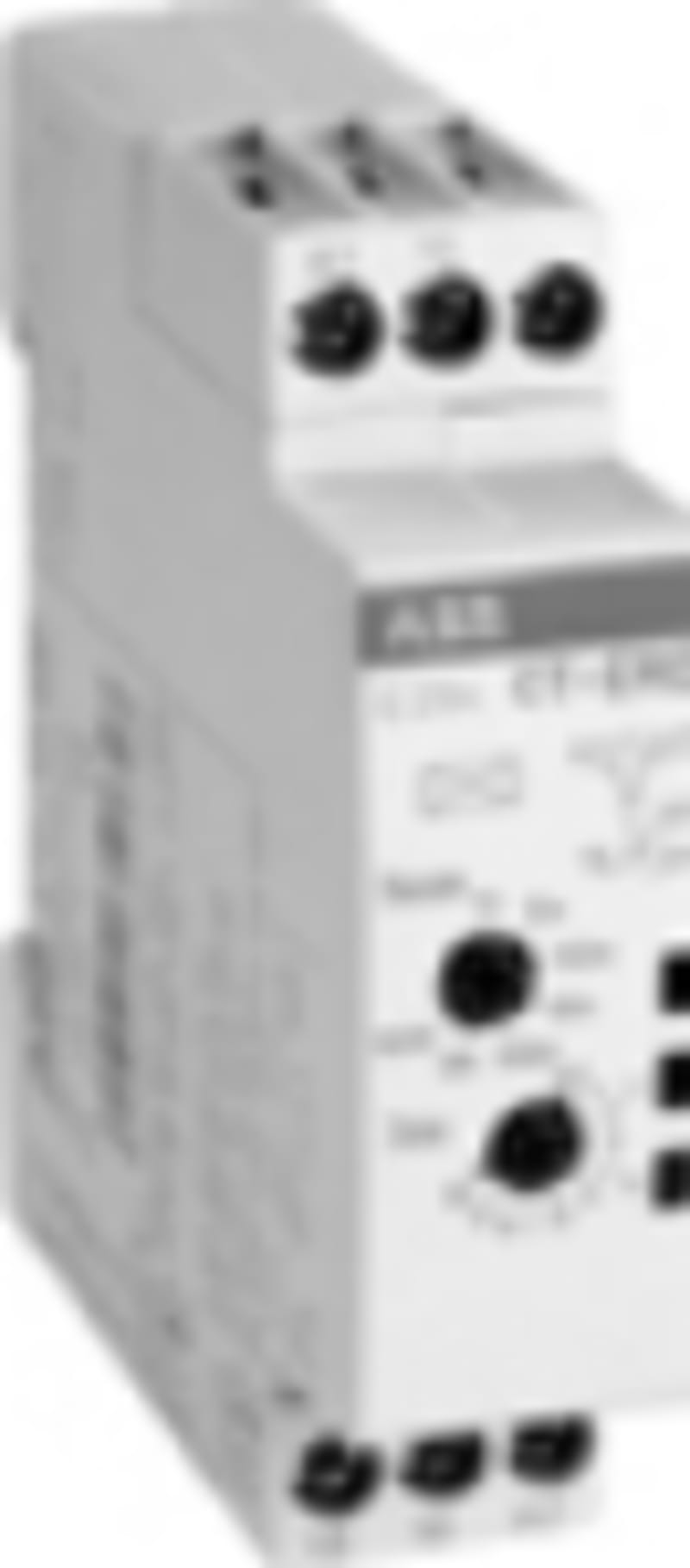

TIME Relay CT-AHD.12

ABB 1SVR500110R0000 — The CT-AHD.12 is a single-function electronic time relay from the CT-D timer range. It provides an OFF-delay (delay on break) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A. A control input works with voltage-related (non-floating) triggering.

Manufacturer part number (MPN)

1SVR500110R0000

EAN / GTIN

4013614350665

HS code

8536.90

Sales unit

pcs

Product Net Width

17.5 mm

Product Net Height

70 mm

Product Net Depth / Length

63 mm

Timer Relay Type

OFF-Delay

Time Range

0.05 s ... 100 h

Rated Control Supply Voltage (U s )

24 ... 240 V AC; 24 ... 48 V DC

Rated Operational Voltage

Auxiliary Circuit 250 V

Rated Frequency (f)

50 / 60 Hz; DC

Output

1 C/O (SPDT) Contact

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 6 A

Rated Operational Current AC-15 (I e )

(230 V) 3 A

Rated Operational Current DC-12 (I e )

(24 V) 6 A

Rated Operational Current DC-13 (I e )

(24 V) 2 A

Rated Impulse Withstand Voltage (U imp )

Input Circuit 4 kV

Rated Insulation Voltage (U i )

Input Circuit / Output Circuit 300 V

Degree of Protection

Housing IP50; Terminals IP20

Overvoltage Category

III

Pollution Degree

3

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 6 A; Output Circuit NO - F Type Fuses 10 A

Connecting Capacity

Flexible 1x 0.5 ... 2.5 mm²; Flexible 2x 0.5 ... 1.5 mm²; Rigid 1x 0.5 ... 4 mm²; Rigid 2x 0.5 ... 1.5 mm²

Tightening Torque

0.5 ... 0.8 N·m

Wire Stripping Length

7 mm

Recommended Screw Driver

0.8 x 4; Pozidriv 1

Mounting Position

1 ... 6

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508

Maximum Operating Voltage UL/CSA

Output Circuit 300 V AC

Contact Rating UL/CSA

C300

Connecting Capacity UL/CSA

Flexible 1x 18-14 AWG; Flexible 2x 18-16 AWG; Rigid 1x 20-12 AWG; Rigid 2x 20-16 AWG

Tightening Torque UL/CSA

4.43 ... 7.08 in·lb

Pilot Duty UL/CSA

C300

Flammability According to UL94

V-2

Ambient Air Temperature

Operation -20 ... +60 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2019010303150608

cULus Certificate

cULus_20031209-E140448

Declaration of Conformity - CCC

2020980303000209

Declaration of Conformity - CE

1SVD981010-00

Declaration of Conformity - UKCA

1SVD981010-10

Object Classification Code

K

ETIM 7

EC001439 - Timer relay

eClass

V11.0 : 27371605

UNSPSC

39122329

E-Number (Finland)

2712641

E-Number (Norway)

4364062

E-Number (Sweden)

4033011

HS Code

8536.90
