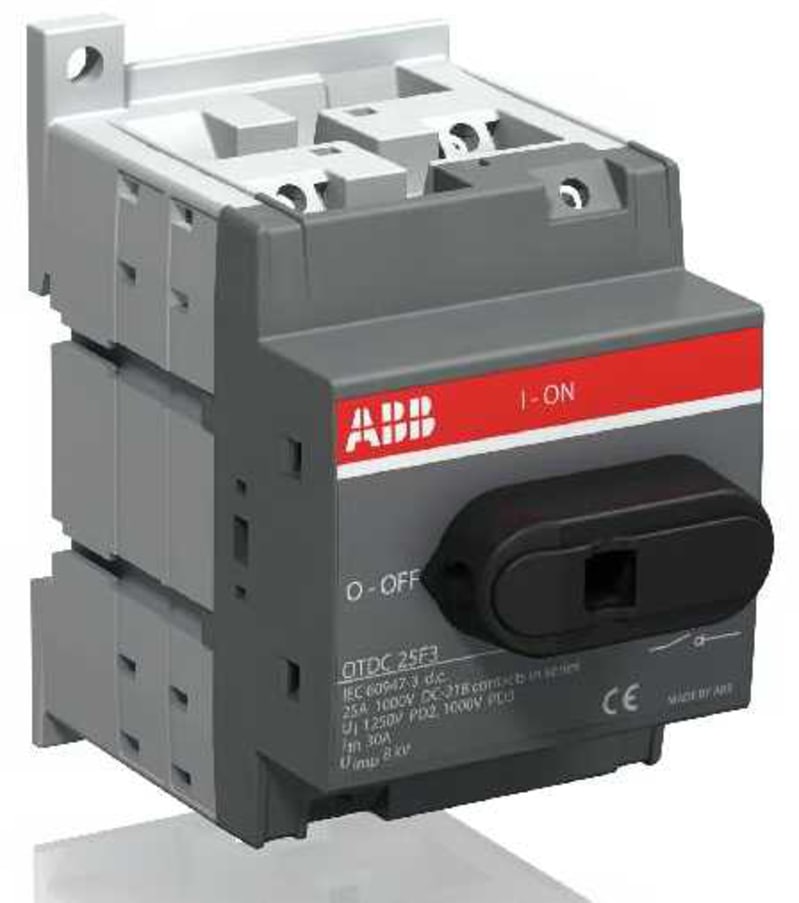

Load-Break Switch OTDC25F3
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB OTDC25F3 — DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 25 A single circuit.
Technical Specifications
- Manufacturer part number (MPN)
- OTDC25F3
- EAN / GTIN
- 6417019526133
- Sales unit
- pcs
- ABB Site Meeting Group Waste To Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Environmental Information
- NA
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Frame Size
- XS
- Product Net Width
- 52.5 mm; 2.1 in
- Product Net Height
- 89 mm; 3.5 in
- Product Net Depth / Length
- 77.6 mm; 3.1 in
- Cable Cross-Section
- 2.5 ... 16 mm²
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 32 A
- Conventional Thermal Current (I the )
- Fully Enclosed 32 A
- Handle Color
- Black
- Handle Type
- Knob
- Mounting Type
- Base mounting, DIN-rail mounting
- Number of Circuits
- 1
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out; Bottom In - Top Out
- Positive Opening Operation Torque (Direct Opening Action)
- 0.4 … 0.8 N·m
- Power Loss
- at Rated Operating Conditions per Pole 0.3 W; Total 0.9 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Current DC-21B (I e )
- (1000 V) 25 A
- Rated Operational Voltage
- 1000 V
- Rated Short-Circuit Making Capacity (I cm )
- (1000 V DC) 0.8 kA
- Rated Short-time Withstand Current Low Voltage (I cw )
- (1000 V DC) 0.8 kA; for 1 s 0.8 kA
- Recommended Screw Driver
- Main Circuit Torx
- Shaft Diameter
- 6 mm; 0.24 in
- Special Functions
- No
- Standards
- IEC 60947-1, -3
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Terminal Type
- Screw Terminals
- Tightening Torque
- Main Circuit 1.2 … 1.4 N·m
- Utilization
- Photovoltaic
- Utilization Category
- Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
- Wire Stripping Length
- Main Circuit 55 … 11 mm
- CCC Certificate
- CQC2012010302579872
- Declaration of Conformity - CE
- 1SCC301192D2704
- Declaration of Conformity - UKCA
- 1SCC301313D0201
- DNV GL Certificate
- 1SCC301231D0201
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC004963 - Switch disconnector (DC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3601355
- E-Number (Norway)
- 4363634
- E-Number (Sweden)
- 3134020
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 6417019526133
- SAP 1000406892
- Code 8482992
