ABB OT100F4C 100A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition

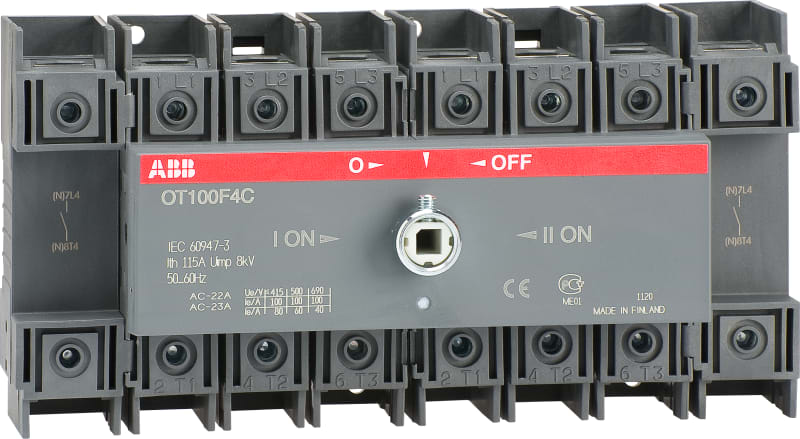

ABB OT100F4C 100A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Degree of Protection: Front IP20; Pollution Degree: 3; Product Net Width: 193 mm; 7.6 in; Product Net Height: 100 mm; 3.94 in; Product Net Depth / Length: 86 mm; 3.39 in.

Manufacturer part number (MPN)

OT100F4C

EAN / GTIN

6417019391502

Sales unit

pcs

Environmental Product Declaration - EPD

1SCC301274D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

193 mm; 7.6 in

Product Net Height

100 mm; 3.94 in

Product Net Depth / Length

86 mm; 3.39 in

Cable Cross-Section

10 ... 70 mm²

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 115 A

Conventional Thermal Current (I the )

Fully Enclosed 115 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Color

Black

Mechanical Durability

6000 cycle

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out, Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 4 W

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 100 A; (500 V) 100 A; (690 V) 100 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 100 A; (500 V) 100 A; (690 V) 100 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 80 A; (500 V) 60 A; (690 V) 40 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 37 kW; (500 V) 37 kW; (690 V) 37 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 2.5 kiloampere rms

Standards

UL 98 / IEC60947-3

Switches Operating Mechanism

Mechanism on Top of the Switch

Terminal Type

Screw Terminals

Tightening Torque

acc. IEC 60947-1 6 N·m

Transition Type

Open

Ampere Rating

100 A

Horsepower Rating UL/CSA

(acc. to UL 200 V) 30 Hp; (acc. to UL 208 V) 30 Hp; (acc. to UL 240 V) 30 Hp; (acc. to UL 480 V) 50 Hp; (acc. to UL 600 V) 50 Hp

Declaration of Conformity - CE

1SCC303021D2702

DNV Certificate

1SCC303138D0201

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5290 >> Disconnect switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601404

E-Number (Norway)

4363559

HS Code

8536.50
