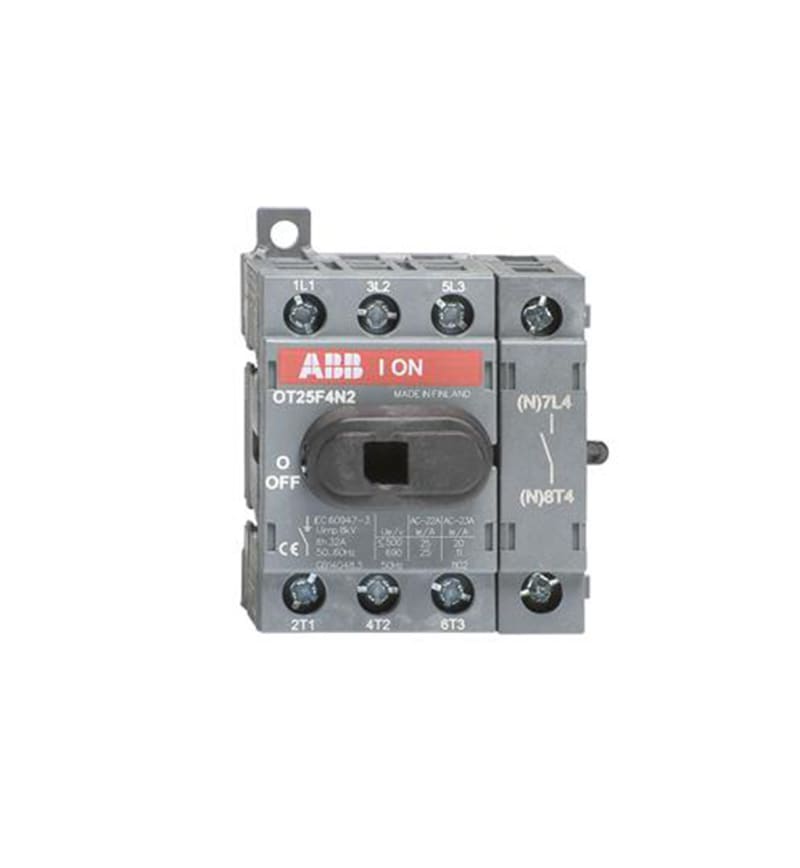

Load-Break Switch OT25F4N2

ABB OT25F4N2 — 4-pole, front operated, base mounted, DIN-rail mountable switch-disconnector / non-fusible disconnect switch with protected clamp terminals, handle and shaft are not included.

Manufacturer part number (MPN)

OT25F4N2

EAN / GTIN

6417019390185

Sales unit

pcs

Package quantity

10 pcs

Configuration Only

No

Country of Origin

Finland

Criticality

No

Lead Time

35 day

Note

No

Product Availability Class

Standard delivery time

Product Sales Status

Active

Storage Location

4001

Environmental Information

1SCC301262D0201

Environmental Product Declaration - EPD

1SCC301278D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

48 mm

Product Net Height

68 mm

Product Net Depth / Length

56 mm

Cable Cross-Section

Cu 0.75 ... 10 mm²

Color

Grey

Connecting Capacity Main Circuit

Flexible with Ferrule 1x Cu 0.75…4 mm²; Solid 1x Cu 0.75…6 mm²; Flexible 1x Cu 0.75…10 mm²; Stranded 1x Cu 0.75…10 mm²

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 32 A

Conventional Thermal Current (I the )

Fully Enclosed 32 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Type

Knob

Mechanical Durability

20000

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 0.6 W

Rated Conditional Short-Circuit Current (I nc )

(40 A fuse, ≤415V) 50 kA; (25 A fuse, 690 V) 50 kA

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 25 A; (500 V) 25 A; (690 V) 25 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 25 A; (500 V) 25 A; (690 V) 25 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 20 A; (500 V) 20 A; (690 V) 11 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 4 kW; (400 ... 415 V) 9 kW; (500 V) 9 kW; (690 V) 9 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 0.71 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 0.5 kA

Recommended Screw Driver

Main Circuit Pozidriv 2

Special Functions

No

Standards

IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Switches Operating Mechanism

Mechanism on Top of the Switch

Terminal Type

Screw Terminals

Tightening Torque

acc. IEC 60947-1 0.8 N·m

Wire Stripping Length

Main Circuit 9-10 mm

Maximum Operating Voltage UL/CSA

600 V

Ampere Rating

30 A

Horsepower Rating UL/CSA

(110 ... 120 V AC) Single Phase 1.5 Hp; (240 V AC) Single Phase 3 Hp; (440 ... 480 V AC) Single Phase 7.5 Hp; (550 ... 600 V AC) Single Phase 10 Hp; (220 ... 240 V AC) Three Phase 7.5 Hp; (440 ... 480 V AC) Three Phase 15 Hp; (550 ... 600 V AC) Three Phase 20 Hp

Tightening Torque UL/CSA

7 in·lb

A2L Certificate – IEC

1SCC301335D0201

ATEX Certificate

No certification needed

Declaration of Conformity - CE

1SCC301166D2703

UL Certificate

cULus certificate OT16-80

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5293 >> Switch disconnector

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601431

E-Number (Norway)

4363523

E-Number (Sweden)

3171067

HS Code

8536.50
