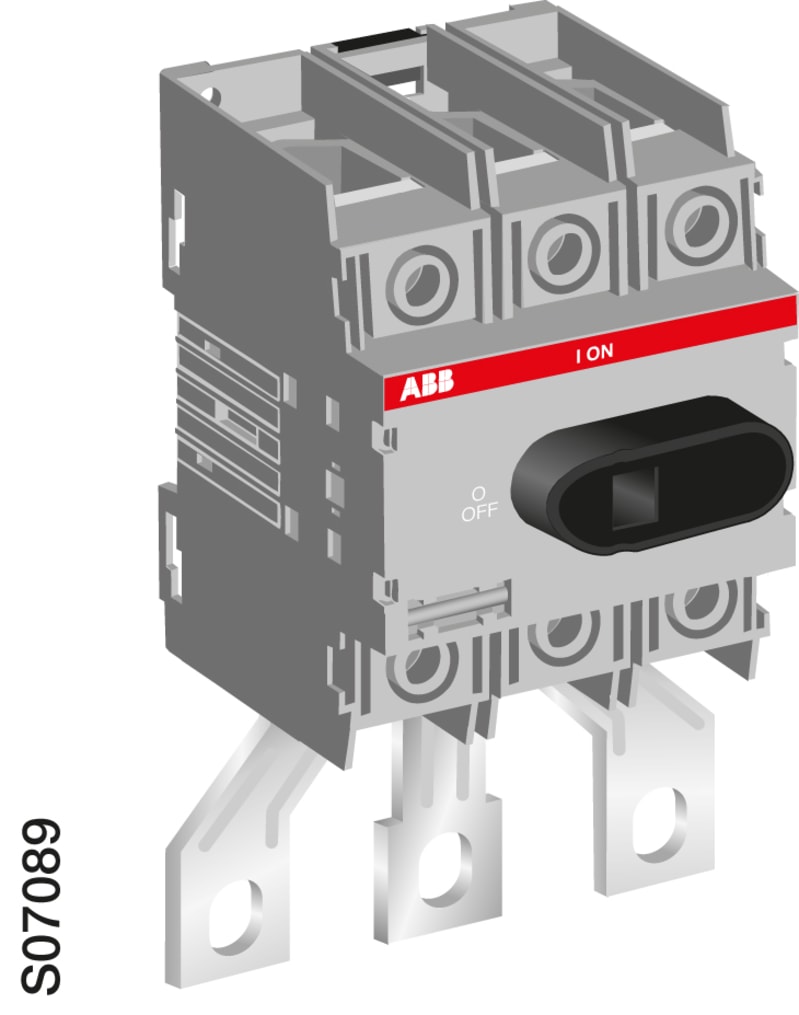

Load-Break Switch OT125FLA3
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SCA114832R1001 — 3-pole, front operated, base mounted, DIN-rail mountable switch-disconnector with extended bus bar terminals on top side and front protected clamp terminals on bottom side, handle and shaft are not included.
Technical Specifications
- Manufacturer part number (MPN)
- 1SCA114832R1001
- EAN / GTIN
- 6417019471402
- Sales unit
- pcs
- Environmental Information
- 1SCC301264D0201
- Environmental Product Declaration - EPD
- 1SCC301280D0201
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Net Width
- 90 mm
- Product Net Height
- 154 mm
- Product Net Depth / Length
- 74 mm
- Cable Cross-Section
- Cu 10 ... 70 mm²
- Color
- Grey
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 125 A
- Conventional Thermal Current (I the )
- Fully Enclosed 125 A
- Distance Between Phases
- Standard
- Handle Type
- Knob
- Mechanical Durability
- 20000
- Mounting Type
- Base mounting
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out; Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 6.3 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 750 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 125 A; (500 V) 125 A; (690 V) 125 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 125 A; (500 V) 125 A; (690 V) 125 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 90 A; (500 V) 70 A; (690 V) 50 A
- Rated Operational Power AC-23A (P e )
- (220 ... 240 V) 22 kW; (400 ... 415 V) 45 kW; (500 V) 45 kW; (690 V) 45 kW
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-Circuit Making Capacity (I cm )
- (690 V) 3.6 kA
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 2.5 kA
- Special Functions
- No
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Terminal Type
- Screw Terminals
- Tightening Torque
- acc. IEC 60947-1 6 N·m
- A2L Certificate – IEC
- 1SCC301335D0201
- Declaration of Conformity - CE
- 1SCC301168D2702
- UL Certificate
- cULus certificate OT30-125
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122221
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3600160
- E-Number (Norway)
- 4363503
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6417019471402
- SAP 1200641771
- Code 83053995
Product Documentation
More from ABB
ABB
ABB Impressivo Three-Part Rocker Switch 1+1+1, Anthracite
1783-81
ABB
AUX-C 3Q+1SY 250V AC XT5 W
1SDA104798R1
ABB
ABB SACE Tmax XT5H 630 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=630 A, 4-Pole
1SDA100533R1
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — In=240 A, 3-Pole
1SDA067723R1
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — Ekip LSI, In=10 A, 3-Pole
1SDA067981R1
ABB
Universaladapter ZLS973N (2CCA180558R0001)
ABB
ABB S403-K2 Miniature Circuit Breaker — 3P, Type K, 2 A, 10 kA 2CCS573103R8277
ABB
ABB S203M-B13 Miniature Circuit Breaker — 3P, Type B, 13 A, 10 kA
2CDS273061R0135
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SCA114832R1001?
- 1SCA114832R1001 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SCA114832R1001.
- What is the HS code for 1SCA114832R1001?
- The customs tariff (HS) code for 1SCA114832R1001 is 8536.50.
- Who manufactures 1SCA114832R1001?
- 1SCA114832R1001 is a ABB product in the Switchgear & Protection range.
- Is a datasheet available for 1SCA114832R1001?
- Yes — the 1SCA114832R1001 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SCA114832R1001?
- The minimum order quantity is 1.
- Is 1SCA114832R1001 available?
- Yes — 1SCA114832R1001 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
