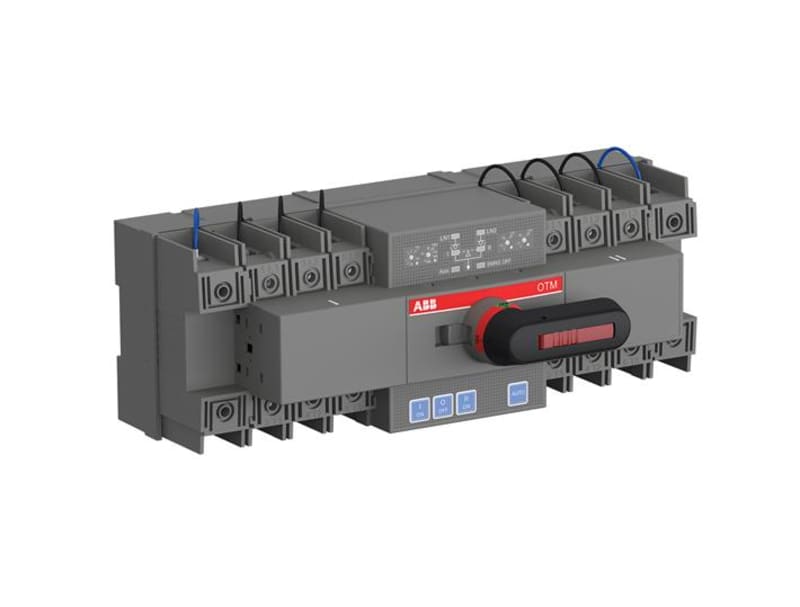

ABB Automatic transfer switch, motor operated, open transition type 1-0-2. Self-supplied unit with adjustable operating parameters. 1SCA151253R1001
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SCA151253R1001 — Automatic transfer switch, motor operated, open transition type 1-0-2. Self-supplied unit with adjustable operating parameters.
Technical Specifications
- Manufacturer part number (MPN)
- 1SCA151253R1001
- EAN / GTIN
- 6417019815664
- Sales unit
- pcs
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Net Width
- 286 mm; 11.26 in
- Product Net Height
- 103 mm; 4.06 in
- Product Net Depth / Length
- 131 mm; 5.16 in
- Controller Type
- 21D
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 40 A
- Fourth Pole Type
- Switched - Simultaneous Function
- Handle Type
- Direct Mount
- Motor Operational Voltage
- 380…415 V AC
- Mounting Type
- Base Mounting Or DIN-rail mounting
- Number of Poles
- 4P
- Position of Line Terminals
- Supplies on Top - Load on Bottom
- Power Loss
- at Rated Operating Conditions per Pole 1.6 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 800 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 40 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 40 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 40 A
- Rated Operational Current AC-31B (I e )
- (380 ... 415 V) 40 A
- Rated Operational Current AC-32B (I e )
- (380 ... 415 V) 40 A
- Rated Operational Current AC-33B (I e )
- (380 ... 415 V) 40 A
- Rated Operational Power AC-23A (P e )
- (380 ... 415 V) 18.5 kW
- Rated Operational Voltage
- Main Circuit 380…415 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 2.5 kiloampere rms
- Terminal Type
- Screw Terminals
- Tightening Torque
- acc. IEC 60947-1 6 N·m
- Transition Type
- Open
- Declaration of Conformity - CE
- 2020980305001190
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122214
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3640449
- E-Number (Norway)
- 4337514
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6417019815664
- SAP 1200641778
- Code 83053983
Product Documentation
