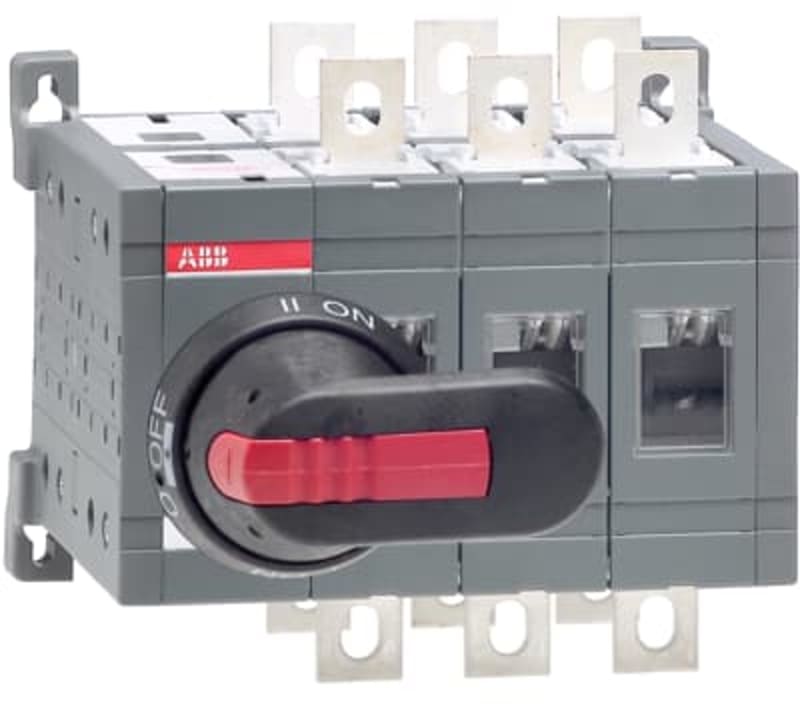

Changeover switch OT200E3CP
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB OT200E03CP — 200A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
Technical Specifications
- Manufacturer part number (MPN)
- OT200E03CP
- EAN / GTIN
- 6417019251912
- Sales unit
- pcs
- End Of Life Disassembling Instructions
- 1SCC303050M0201
- Environmental Information
- 1SCC303050D0201
- Environmental Product Declaration - EPD
- 1SCC303082D0201
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Net Width
- 170 mm; 6.69 in
- Product Net Height
- 150 mm; 5.91 in
- Product Net Depth / Length
- 160 mm; 6.3 in
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 200 A
- Conventional Thermal Current (I the )
- Fully Enclosed 200 A
- Distance Between Phases
- Standard
- Handle Color
- Black
- Mounting Type
- Base mounting
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 4 W
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A
- Rated Operational Current AC-31B (I e )
- (380 ... 415 V) 200 A
- Rated Operational Current AC-33B (I e )
- (380 ... 415 V) 200 A
- Rated Operational Power AC-23A (P e )
- (380 ... 415 V) 110 kW; (500 V) 132 kW; (690 V) 200 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 8 kiloampere rms
- Switches Operating Mechanism
- Mechanism at the End of the Switch; 03 (Left Side)
- Terminal Type
- Screw Terminals
- Terminal Width
- 20 mm
- Tightening Torque
- acc. IEC 60947-1 15 ... 22 N·m
- Transition Type
- Open
- Declaration of Conformity - CE
- 1SCC303001D2704
- DNV Certificate
- 1SCC303138D0201
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3641503
- E-Number (Norway)
- 4337062
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6417019251912
- SAP 1000224731
- Code 81132822
