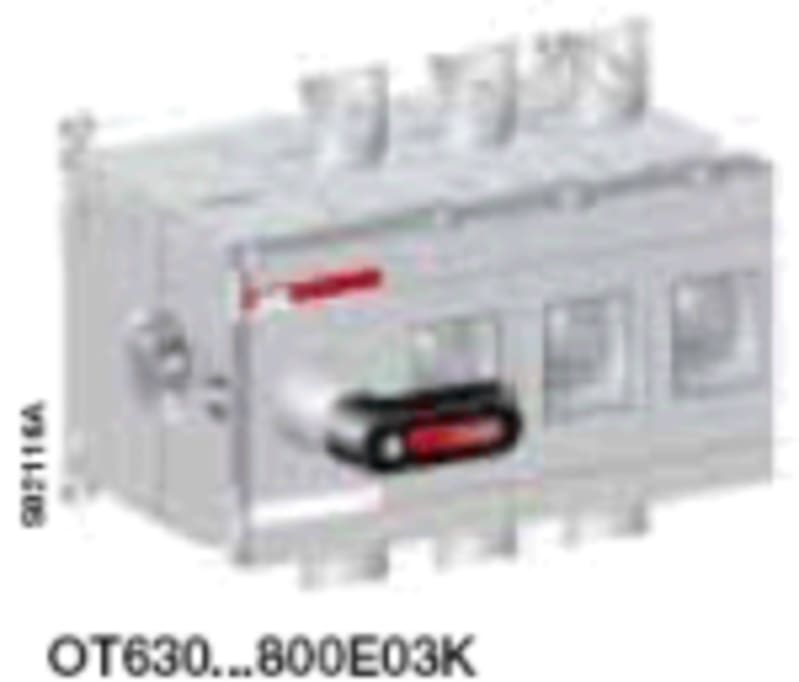

ABB 3-Pole, front operated, base mounted switch-disconnector with black direct mount handle, terminal bolt kit included 1SCA022779R5160

ABB 1SCA022779R5160 — 3-pole, front operated, base mounted switch-disconnector with black direct mount handle, terminal bolt kit included.

Manufacturer part number (MPN)

1SCA022779R5160

EAN / GTIN

6417019253763

HS code

8536.90

Sales unit

pcs

End Of Life Disassembling Instructions

1SCC301119M0201

Environmental Information

1SCC301232D0201

Environmental Product Declaration - EPD

1SCC301284D0201

Degree of Protection

Front IP00

Pollution Degree

3

Product Net Width

266 mm

Product Net Height

250 mm

Product Net Depth / Length

157 mm

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 800 A

Conventional Thermal Current (I the )

Fully Enclosed 800 A

Distance Between Phases

Standard

Handle Color

Black

Handle Type

Direct Mount Pistol Type

Mechanical Durability

10000

Mounting Type

Base mounting

Number of Poles

3P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 40 W

Rated Conditional Short-Circuit Current (I nc )

(800 A fuse, 500 V) 100 kA; (800 A fuse, 690 V) 80 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 800 A; (500 V) 800 A; (690 V) 800 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 800 A; (500 V) 800 A; (690 V) 800 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 800 A; (500 V) 800 A; (690 V) 800 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 250 kW; (400 ... 415 V) 450 kW; (500 V) 560 kW; (690 V) 800 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 80 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 20 kA

Special Functions

No

Standards

IEC 60947-3

Switches Operating Mechanism

Mechanism at the End of the Switch; 03 (Left Side)

Terminal Type

Lug terminals

Terminal Width

39 mm

Tightening Torque

acc. IEC 60947-1 50 … 75 N·m

A2L Certificate – IEC

1SCC301337D0201

ATEX Certificate

No certification needed

BV Certificate

1SCC301103D0201

Declaration of Conformity - CE

1SCC301140D2704

DNV GL Certificate

1SCC301184D0203

UL Certificate

No certification needed

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122221

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3660812

E-Number (Norway)

4337051

HS Code

8536.90
