Changeover switch OT315E03CP
Pricing
Request a quote
We reply within 24 hours
Product Description

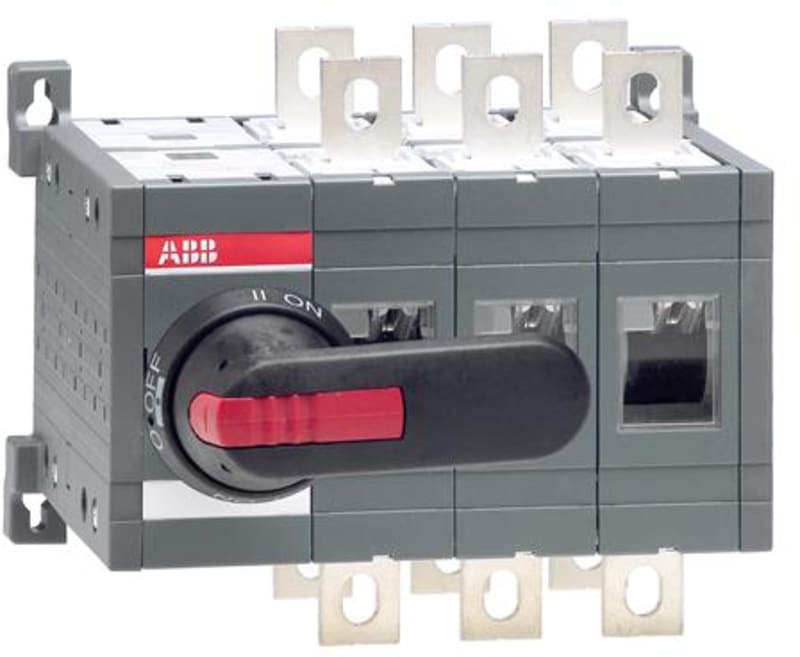

ABB 1SCA022772R6780 — 315A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
Technical Specifications
- Manufacturer part number (MPN)
- 1SCA022772R6780
- EAN / GTIN
- 6417019251981
- Sales unit
- pcs
- End Of Life Disassembling Instructions
- 1SCC303051M0201
- Environmental Information
- 1SCC303050D0201
- Environmental Product Declaration - EPD
- 1SCC303086D0201
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Net Width
- 221 mm; 8.7 in
- Product Net Height
- 185 mm; 7.28 in
- Product Net Depth / Length
- 203 mm; 7.99 in
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 315 A
- Conventional Thermal Current (I the )
- Fully Enclosed 315 A
- Distance Between Phases
- Standard
- Handle Color
- Black
- Mounting Type
- Base mounting
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 6.5 W
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A
- Rated Operational Current AC-31B (I e )
- (380 ... 415 V) 315 A
- Rated Operational Current AC-33B (I e )
- (380 ... 415 V) 315 A
- Rated Operational Power AC-23A (P e )
- (380 ... 415 V) 160 kW; (500 V) 220 kW; (690 V) 315 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 8 kiloampere rms
- Switches Operating Mechanism
- Mechanism at the End of the Switch; 03 (Left Side)
- Terminal Type
- Screw Terminals
- Terminal Width
- 25 mm
- Tightening Torque
- acc. IEC 60947-1 30 ... 44 N·m
- Transition Type
- Open
- Declaration of Conformity - CE
- 1SCC303004D2703
- DNV Certificate
- 1SCC303138D0201
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3641505
- E-Number (Norway)
- 4337003
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6417019251981
- SAP 1000224783
- Code 8938673
Product Documentation
