ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=40 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT4S 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 40 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip LS/In (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068491R1, EAN 8015644023973, ABB/SAP material 1200636710, catalogue code 83058856.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT4 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT4S 160 Ekip LS/In In=40A 4p FF
- ABB order code (MPN)
- 1SDA068491R1
- EAN / GTIN
- 8015644023973
- ABB / SAP material no.
- 1200636710
- Frame
- XT4 (160 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- Ekip LS/In
- Rated uninterrupted current In
- 40 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644023973
- SAP 1200636710
- Code 83058856
Product Documentation
More from ABB
ABB
ABB 1SDA066606R1 KEY LOCK Ronis Equal Fellow A IN OPEN WITH KEY Withdrawable IN OPEN Position FOR C.BREAKER XT3
ABB
WALL-Mount Cabinet CA26V Media 550X950X160MM. IP44
2CPX052208R9999
ABB
Ekip Touch Measuring LSI In=320 XT5 3P
1SDA100599R1
ABB

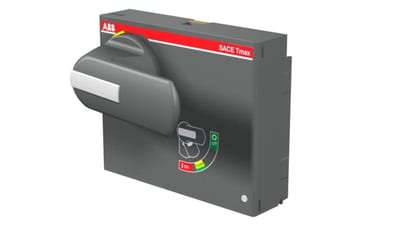

ABB 1SDA104837R1 Rotary Handle Operating Mechanism Emergency Direct WITH Padlock Device FOR Withdrawable Circuit-Breaker XT6
