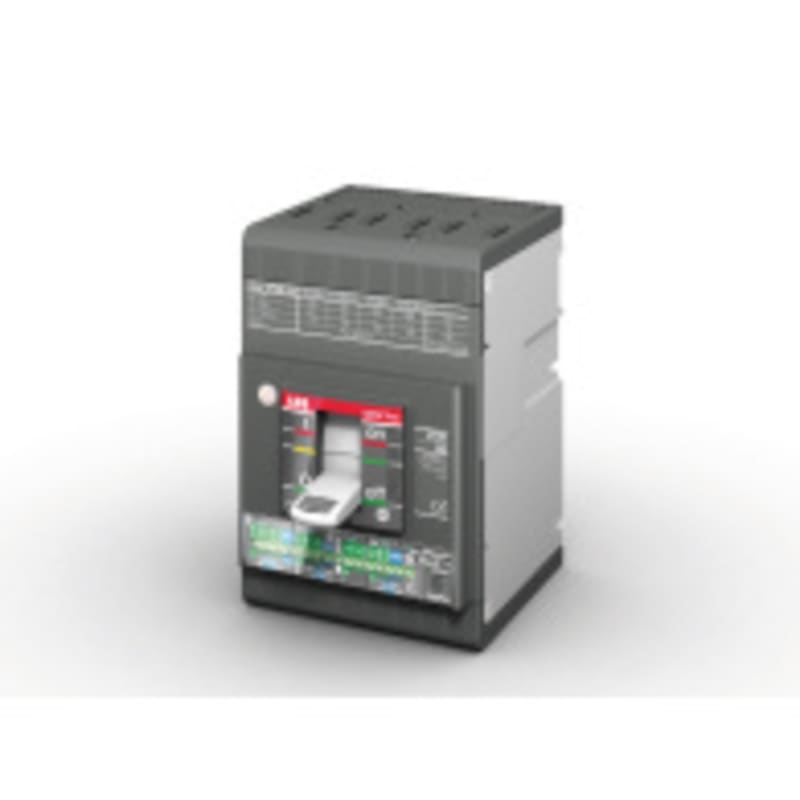

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R6,3, In=6.3 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2N 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 6.3 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD R6,3 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067006R1, EAN 8015644694890, ABB/SAP material 1200446935, catalogue code 82501622.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2N 160 TMD R6,3 3p FF
- ABB order code (MPN)
- 1SDA067006R1
- EAN / GTIN
- 8015644694890
- ABB / SAP material no.
- 1200446935
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- TMD R6,3
- Rated uninterrupted current In
- 6.3 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644694890
- SAP 1200446935
- Code 82501622
Product Documentation
More from ABB
ABB

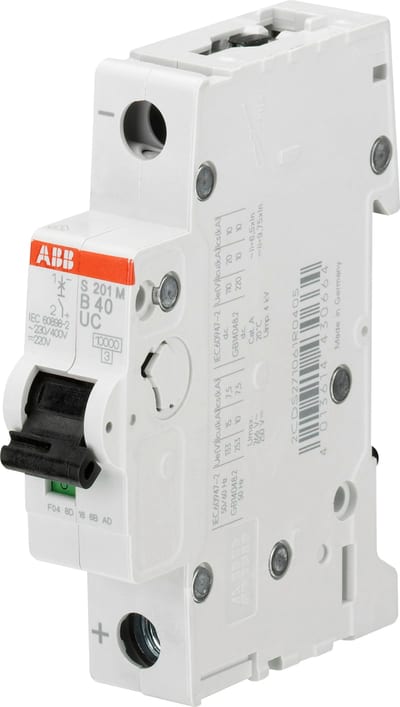

ABB S201M-B6 Miniature Circuit Breaker — 1P, Type B, 6 A, 10 kA
2CDS271061R0065
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — TMD 32-320, In=32 A, 3-Pole
1SDA067553R1
ABB

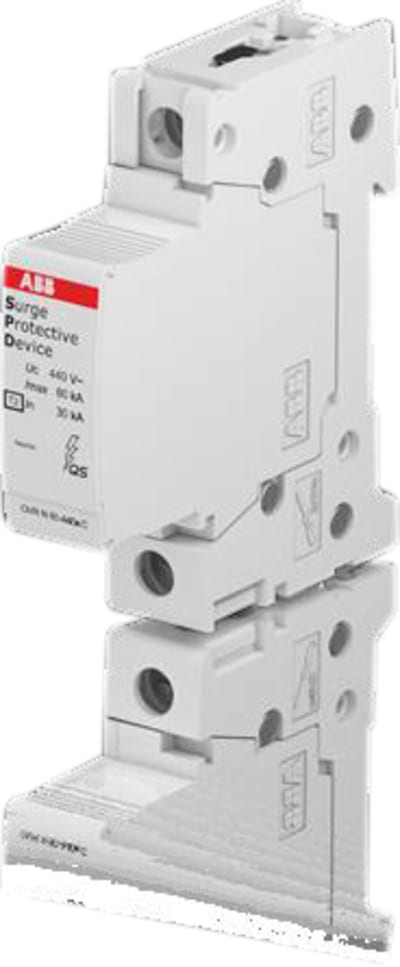

ABB 2CTB815708R5400 OVR T2 N 80-440S P QS Surge Protective Device
ABB

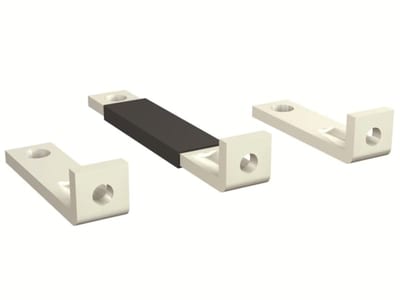

ABB 1SDA104775R1 REAR Terminals Horizontal/Vertical 3PCS FOR Fixed PART XT5 400A IEC
ABB

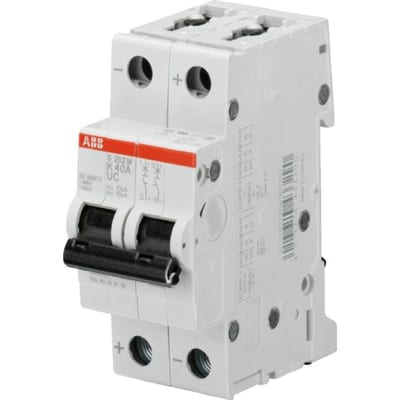

ABB S202M-K0 Miniature Circuit Breaker — 2P, Type K, 0 A, 10 kA 2CDS272061R0087
ABB

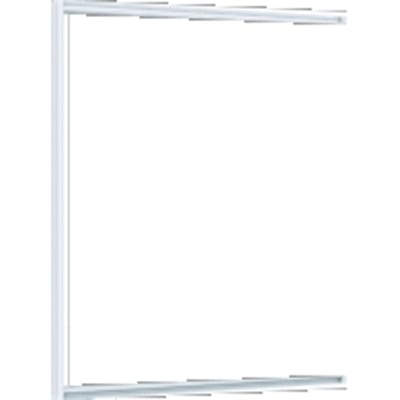

Cover frame TZP209 1350X500X30MM
2CPX010637R9999
ABB

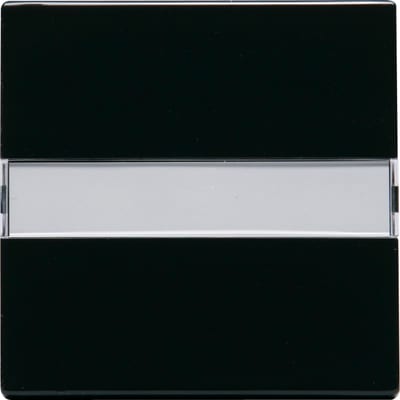

ABB Impressivo Switch Rocker with Label Field Anthracite
1764 NLI-81
ABB

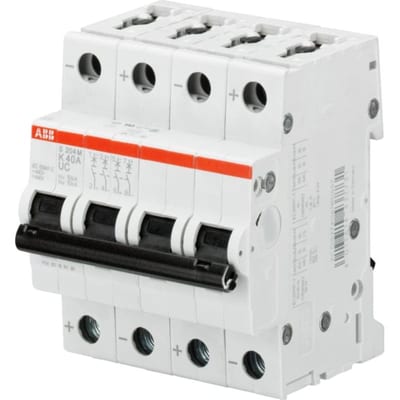

ABB S204M-Z32 Miniature Circuit Breaker — 4P, Type Z, 32 A, 10 kA
