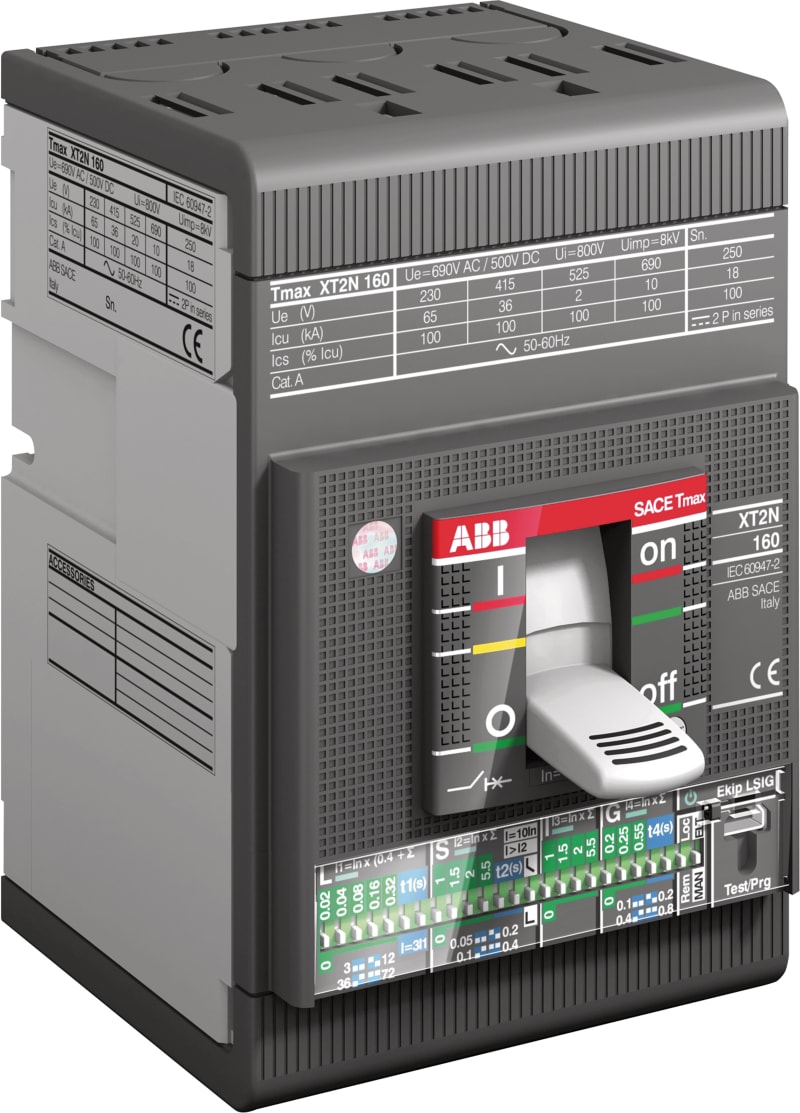

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R1,6, In=1.6 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2N 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 1.6 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD R1,6 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067000R1, EAN 8015644694869, ABB/SAP material 1200634275, catalogue code 83049642.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2N 160 TMD R1,6 3p FF
- ABB order code (MPN)
- 1SDA067000R1
- EAN / GTIN
- 8015644694869
- ABB / SAP material no.
- 1200634275
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- TMD R1,6
- Rated uninterrupted current In
- 1.6 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644694869
- SAP 1200634275
- Code 83049642
