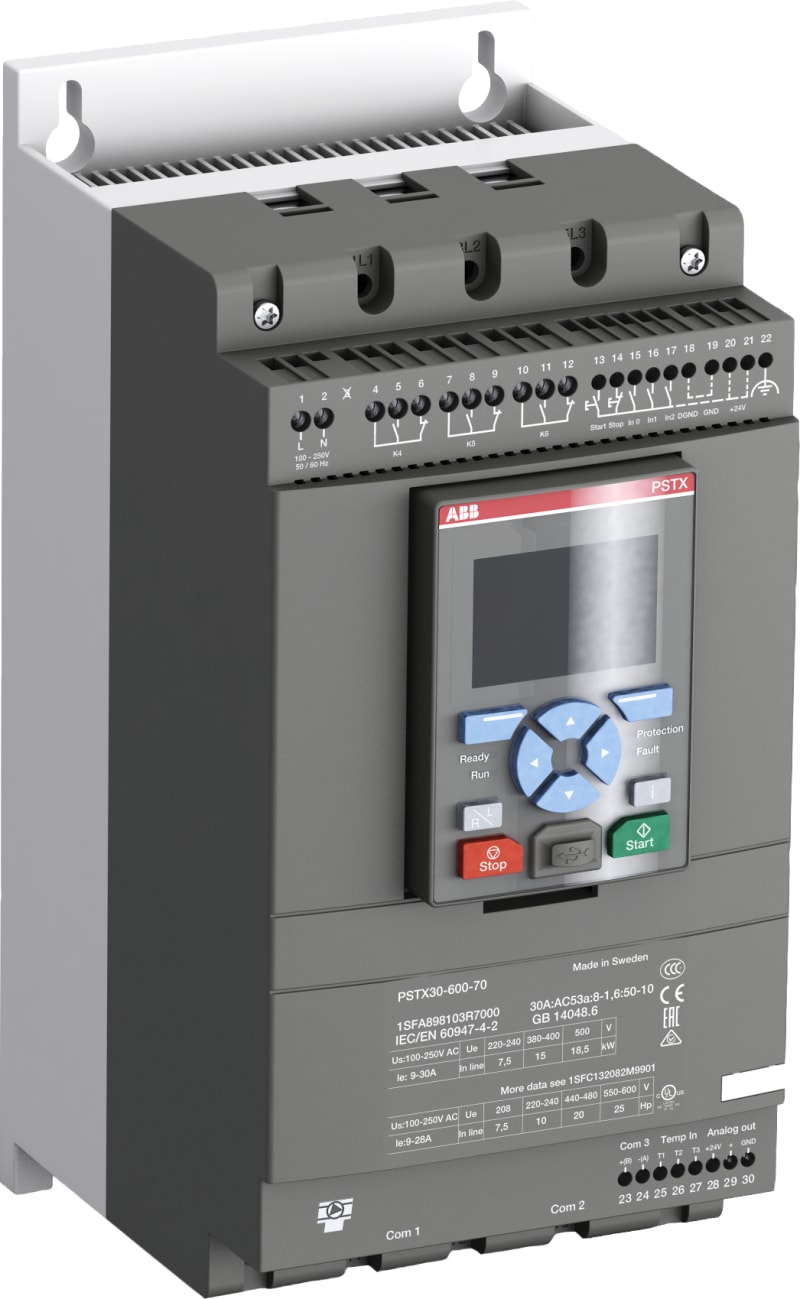

Soft starter PSTX30-600-70 30A

ABB PSTX30-600-70 — The soft starter PSTX30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208.600 V AC. The rated control voltage is between 100.250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30.1250 A inline connection or 52.2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.

Manufacturer part number (MPN)

PSTX30-600-70

EAN / GTIN

7320500501290

Sales unit

pcs

Rated current

30 A

Country of Origin

Sweden

Lead Time

0 day

Product Sales Status

Active

Configuration Only

No

Criticality

No

Note

No

Product Availability Class

Only for warranty purposes. Not available for normal sales

Storage Location

4014

Product Net Width

150 mm

Product Net Height

314 mm

Product Net Depth / Length

198 mm

Rated Operational Voltage

208 ... 600 V AC

Rated Control Supply Voltage (U s )

100 ... 250 V AC

Rated Control Circuit Voltage (U c )

24 V DC

Rated Frequency (f)

50/60 Hz; Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe)

(230 V) 7.5 kW; (400 V) 15 kW; (500 V) 18.5 kW

Rated Operational Current - In-Line Connection (Ie)

30 A

Rated Operational Power - Inside Delta Connection

at 230 V 12.5 kW; at 400 V 25 kW; at 500 V 30 kW

Rated Operational Current - Inside Delta Connection

52 A

Service Factor Percentage

100 %

Overload Protection

Built-in electronic overload protection

Integrated Electronic Overload

Yes

Starting Capacity at Maximum Rated Current Ie

4xIe for 10s

Ramp Time

1 ... 120 s

Initial Voltage During Start

10 ... 99 %

Step Down Voltage Special Ramp

100 ... 10 %

Current Limit Function

1.5 ... 7.5 xle

Switch for Inside Delta Connection

Yes

Run Signal Relay

Yes

By-pass Signal Relay

Yes

Fault Signal Relay

Yes

Overload Signal Relay

Yes

Analog Outputs

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED)

Green

Signal Indication Running R (LED)

Green

Signal Indication Protection (LED)

Yellow

Signal Indication Fault (LED)

Red

Communication

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type

Cable Clamp

Connecting Capacity Main Circuit

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit

Rigid 1 x 2.5

Tightening Torque

Main Circuit 8 N·m

Product Main Type

PSTX30

Function

Auto phase sequence detection; Automatic restart; Current limit; Current limit ramp; Dual current limit; Dynamic brake; Electricity metering; Electronic overload Time-to-cool; Emergency mode; Event log; Full voltage start; Jog with slow speed, forward and reverse; Keypad password; Kick start; Limp mode with two-phase motor control if one set of thyristors is shorted; Motor heating; Pre-start function; Pump cleaning; Real time clock; Sequence start; Soft start with torque control; Soft start with voltage ramp; Soft stop with torque control; Soft stop with voltage ramp; Stand still brake; Start reverse (external contactors); Thyristor runtime measurement; Torque limit; Voltage sags detection

Protection Function

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 7.5 Hp; (220 ... 240 V AC) Three Phase 10 Hp; (440 ... 480 V AC) Three Phase 20 Hp; (550 ... 600 V AC) Three Phase 25 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

Tightening Torque UL/CSA

Main Circuit 70.8

Ambient Air Temperature

Operation -25 ... +60 °C; Storage -40 ... +70 °C

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

EcoSolutions Profile

1SFC100125C0367

End Of Life Disassembling Instructions

1SFC132450M0201

Environmental Product Declaration - EPD

1SFC132444; 1SFC132435

Extended Product Lifetime

Product Durability

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 73.4 %

CQC Certificate

CN: CQC2014010304744405 / SE: CQC2014010304724380

Declaration of Conformity - CCC

CN: 2020980304001091 / SE: 2020980304001489

Declaration of Conformity - CE

2CMT005209

DNV Certificate

TAE000087N

EU Data Act Compliance Declaration

1SFC132498M0201

Object Classification Code

Q

ETIM 7

EC000640 - Soft starter

eClass

V11.0 : 27370907

UNSPSC

39121521

IDEA Granular Category Code (IGCC)

4740 >> Soft starter

HS Code

8537.10

• EAN 7320500501290
• SAP 1000690760
• Code 8300204
