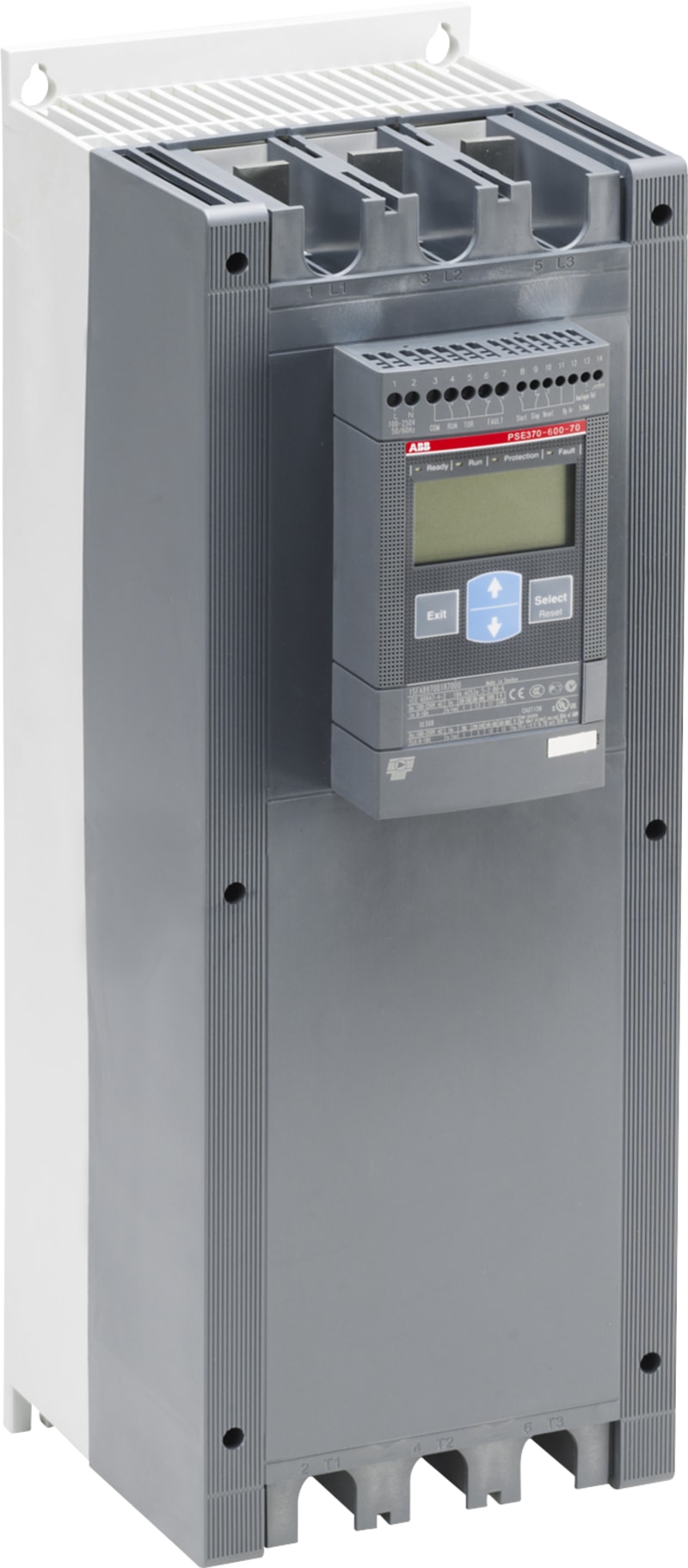

Soft start PSE370-600-70-1 370A

ABB PSE370-600-70-1 — The soft starter PSE370-600-70-1 has a rated maximum operational current of 370 A with an operating voltage span from 208.600 V AC. The rated control voltage is between 100.250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general pur­bag soft starter. It’s a perfect balance be­tween high starting capacity and cost effi­ciency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18.370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.

Manufacturer part number (MPN)

PSE370-600-70-1

EAN / GTIN

7320500515051

Sales unit

pcs

Configuration Only

No

Country of Origin

Sweden

Criticality

No

Lead Time

1 day

Note

No

Product Availability Class

Only for warranty purposes. Not available for normal sales

Product Sales Status

Active

Storage Location

4014

Product Net Width

190 mm

Product Net Height

435 mm

Product Net Depth / Length

237 mm

Rated Operational Voltage

208 ... 600 V AC

Rated Control Supply Voltage (U s )

100 ... 250 V AC

Rated Control Circuit Voltage (U c )

24 V DC

Rated Frequency (f)

50/60 Hz; Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe)

(230 V) 110 kW; (400 V) 200 kW; (500 V) 250 kW

Rated Operational Current - In-Line Connection (Ie)

370 A

Service Factor Percentage

100 %

Overload Protection

Built-in electronic overload protection

Integrated Electronic Overload

Yes

Starting Capacity at Maximum Rated Current Ie

4xIe for 10s

Ramp Time

0 ... 30 s; 1 ... 30 s

Initial Voltage During Start

30 ... 70 %

Step Down Voltage Special Ramp

No %

Current Limit Function

1.5 ... 7xIe

Switch for Inside Delta Connection

No

Run Signal Relay

Yes

By-pass Signal Relay

Yes

Fault Signal Relay

Yes

Overload Signal Relay

Yes

Analog Outputs

4…20 mA

Signal Indication Completed Start Ramp (LED)

Green

Signal Indication Ready to Start/Standby ON (LED)

Green

Signal Indication Running R (LED)

Green

Signal Indication Ramping Up/Down (LED)

Green

Signal Indication Protection (LED)

Yellow

Signal Indication Fault (LED)

Red

Communication

Modbus-RTU

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type

Main Circuit: Bars

Connecting Capacity Main Circuit

Hole Diameter 8.5 mm; Rigid 1/2 x 2.5 ... 70 mm²; Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit

Rigid 1 x 2.5 mm²; Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit

Rigid 1 x 2.5

Tightening Torque

Control Circuit 0.5 N·m; Main Circuit 28 N·m; Supply Circuit 0.5 N·m

Product Main Type

PSE370

Function

Soft start with torque control; Soft start with voltage ramp; Soft stop with torque control; Soft stop with voltage ramp; Kick start; Sequence start; Current limit; Start reverse (external contactors); Automatic restart; Event log

Protection Function

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 125 Hp; (220 ... 240 V AC) Three Phase 150 Hp; (440 ... 480 V AC) Three Phase 300 Hp; (550 ... 600 V AC) Three Phase 350 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

Tightening Torque UL/CSA

Control Circuit 4.4 in·lb; Main Circuit 247.8; Supply Circuit 4.4 in·lb

Ambient Air Temperature

Operation -25 ... +60 °C; Storage -40 ... +70 °C

Environmental Product Declaration - EPD

1SFC132476D0201

CQC Certificate

CQC2018010304109915

Declaration of Conformity - CCC

2020980304001510

Declaration of Conformity - CE

2CMT2015-005447

DNV Certificate

1SFC132383M0001 | TAE0000342

EU Data Act Compliance Declaration

1SFC132495M0201

Object Classification Code

Q

ETIM 7

EC000640 - Soft starter

eClass

V11.0 : 27370907

UNSPSC

39121521

IDEA Granular Category Code (IGCC)

4740 >> Soft starter

HS Code

8537.10
