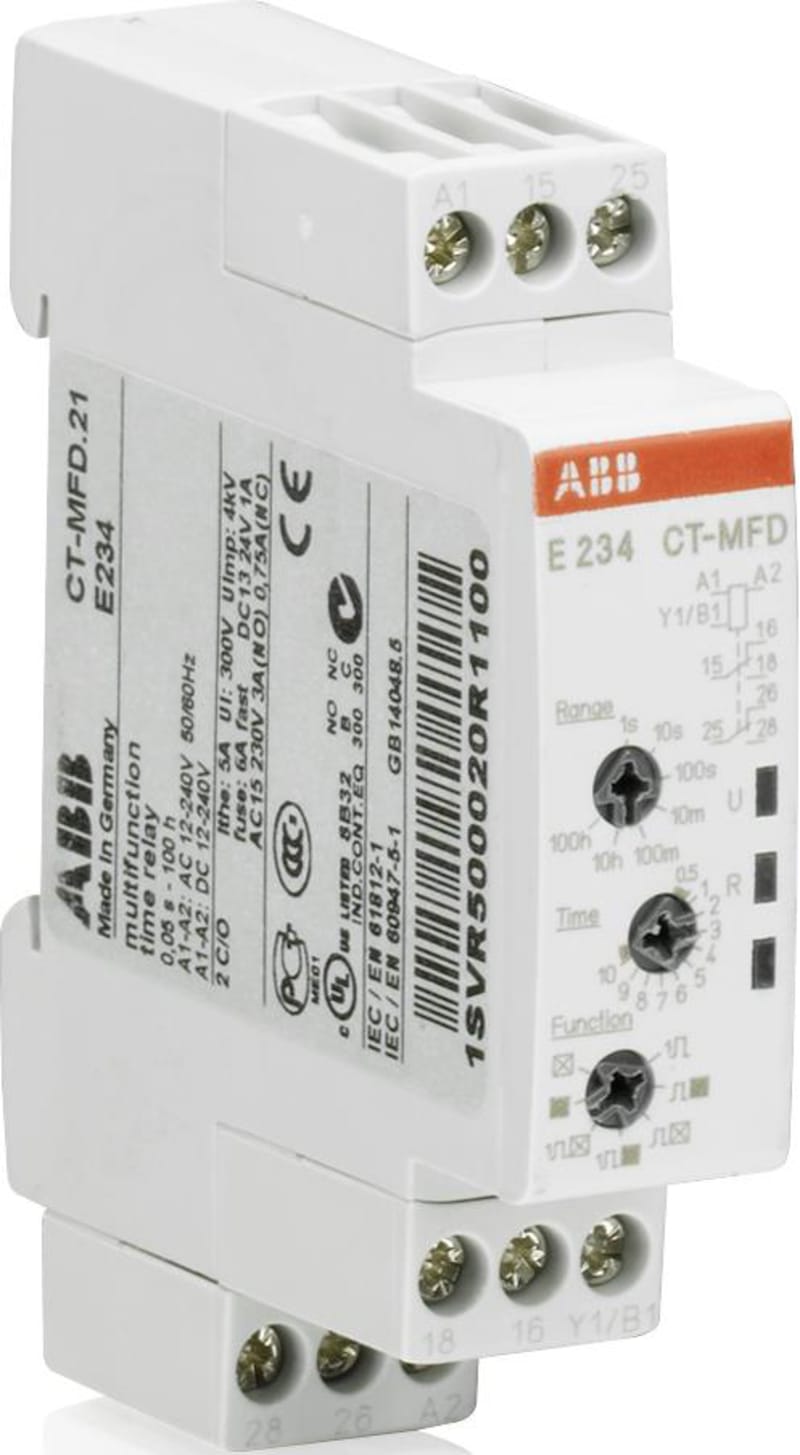

TIME Relay CT-MFD.21

ABB 1SVR500020R1100 — The CT-MFD.21 is a multifunction electronic time relay from the CT-D timer range. It provides 7 timing functions with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 12 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 5 A. A control input works with voltage-related (non-floating) triggering.

Manufacturer part number (MPN)

1SVR500020R1100

EAN / GTIN

4016779657662

HS code

8536.90

Sales unit

pcs

Country of Origin

Germany

Lead Time

0 day

Product Sales Status

Active

Product Net Width

17.5 mm

Product Net Height

80 mm

Product Net Depth / Length

63 mm

Timer Relay Type

ON-Delay; OFF-Delay; Impulse ON; Impulse OFF; Flasher Starting with ON; Flasher Starting with OFF; Pulse Former

Time Range

0.05 s ... 100 h

Rated Control Supply Voltage (U s )

12 ... 240 V AC/DC

Rated Operational Voltage

Auxiliary Circuit 250 V

Rated Frequency (f)

50 / 60 Hz; DC

Output

2 C/O Contacts

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 5 A

Rated Operational Current AC-15 (I e )

(230 V) 3 A

Rated Operational Current DC-12 (I e )

(24 V) 5 A

Rated Operational Current DC-13 (I e )

(24 V) 1 A

Rated Impulse Withstand Voltage (U imp )

Input Circuit 4 kV

Rated Insulation Voltage (U i )

Input Circuit / Output Circuit 300 V; Output Circuit 1 / Output Circuit 2 300 V

Degree of Protection

Housing IP50; Terminals IP20

Overvoltage Category

III

Pollution Degree

3

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 6 A; Output Circuit NO - F Type Fuses 6 A

Connecting Capacity

Flexible 1x 0.5 ... 2.5 mm²; Flexible 2x 0.5 ... 1.5 mm²; Rigid 1x 0.5 ... 4 mm²; Rigid 2x 0.5 ... 1.5 mm²

Tightening Torque

0.5 ... 0.8 N·m

Wire Stripping Length

7 mm

Recommended Screw Driver

0.8 x 4; Pozidriv 1

Mounting Position

1 ... 6

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508

Maximum Operating Voltage UL/CSA

Output Circuit 300 V AC

Contact Rating UL/CSA

C300

Connecting Capacity UL/CSA

Flexible 1x 18-14 AWG; Flexible 2x 18-16 AWG; Rigid 1x 20-12 AWG; Rigid 2x 20-16 AWG

Tightening Torque UL/CSA

4.43 ... 7.08 in·lb

Pilot Duty UL/CSA

C300

Flammability According to UL94

V-2

Ambient Air Temperature

Operation -20 ... +60 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2019010303150608

cULus Certificate

cULus_20031209-E140448

Declaration of Conformity - CCC

2020980303000209

Declaration of Conformity - CE

1SVD981010-00

Declaration of Conformity - UKCA

1SVD981010-10

Object Classification Code

K

ETIM 7

EC001439 - Timer relay

eClass

V11.0 : 27371605

UNSPSC

39122329

E-Number (Finland)

2712819

E-Number (Norway)

4187691

E-Number (Sweden)

4030176

HS Code

8536.90

• EAN 4016779657662
• SAP 1000672059
• Code 8370617
