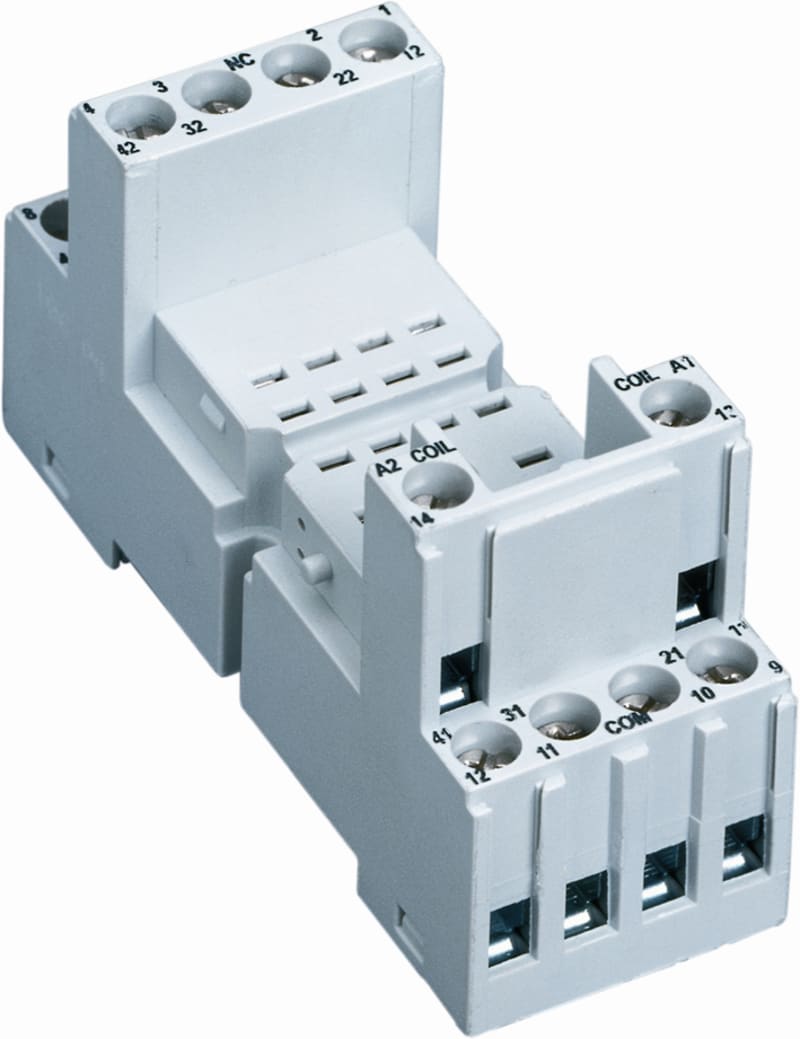

Plinth Screw Connection CR-M4SS
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SVR405651R3000 — The CR-M4SS socket is from the CR-M (miniature) relay range. The standard socket is suitable for CR-M relays with 2 and 4 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
Technical Specifications
- Manufacturer part number (MPN)
- 1SVR405651R3000
- EAN / GTIN
- 4013614528675
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Country of Origin
- India
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Product Net Width
- 27 mm
- Product Net Height
- 42.5 mm
- Product Net Depth / Length
- 82 mm
- Function
- Accessory for interface relays CR-M
- Sub-Function
- Socket for miniature relays
- Sub-Function 2
- Standard socket for miniature relay 2 c/o or 4 c/o
- Rated Operational Voltage
- 250 V
- Terminal Type
- Screw Terminals
- Rated Operational Current AC-12 (I e )
- (230 V) 7 A
- Rated Insulation Voltage (U i )
- 3 V
- Mounting Position
- 1
- Standards
- CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61984; UL 508
- Connecting Capacity Main Circuit UL/CSA
- Flexible with Ferrule 2x 20-16 AWG; Rigid 2x 20-14 AWG; Stranded 2 x 20-14 AWG
- Flammability According to UL94
- V-0
- Ambient Air Temperature
- Operation -40 ... +70 °C; Storage -40 ... +70 °C
- Maximum Operating Altitude Permissible
- 2000 m
- CSA Certificate
- CSA_262671_2785566
- cURus Certificate
- cURus508_E244328
- Declaration of Conformity - CE
- 1SVD982020-0001
- Declaration of Conformity - UKCA
- 1SVD982020-1000
- EAC Certificate
- EAC_RU_C-DE.ME77.B.00446-19
- Object Classification Code
- K
- ETIM 7
- EC001456 - Relay socket
- eClass
- V11.0 : 27371603
- UNSPSC
- 39122335
- E-Number (Finland)
- 2712717
- E-Number (Norway)
- 4187433
- E-Number (Sweden)
- 4005374
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4013614528675
- SAP 1200794286
- Code 84007305
Product Documentation
