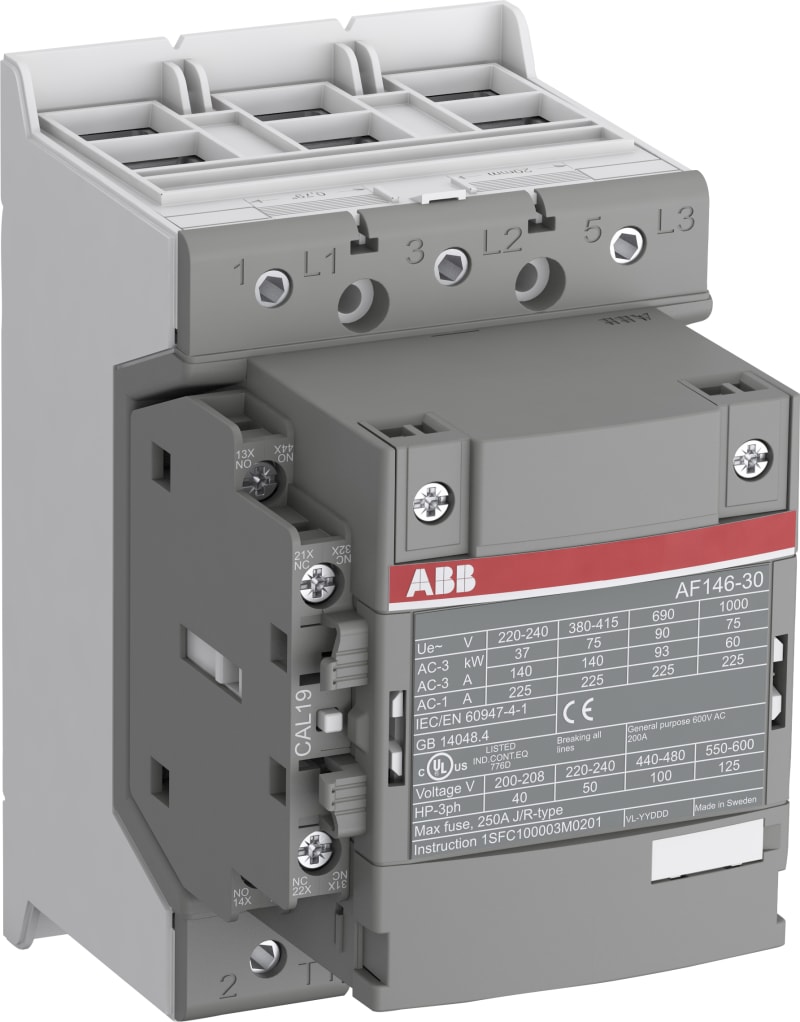

Contactor AF146-30-11-13 (AF146-30-11-13 100-250V 50/60Hz / Dc)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF146-30-11-13 100-250V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF146-30-11-13 100-250V 50/60Hz/DC - Contactor with terminal connection. With 1NO+1NC hj.connector.
Technical Specifications
- Manufacturer part number (MPN)
- AF146-30-11-13 100-250V 50/60Hz / DC
- EAN / GTIN
- 7320500476994
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 90 mm
- Height
- 150 mm
- Depth
- 126 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 75 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 146 A
- Rated operation current Ie at AC-1, 400 V
- 225 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 37.285 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500476994
- SAP 1000598827
- Code 8396448
Product Documentation
More from ABB
ABB
Jussi ON Baseb M DBL Socket
402EL
ABB
ABB 2TKA000800G1 Jussi flush-mounting cover frame 85mm for four 1-Gang Jussi-devices and one Elko device.
ABB
KIT EF, XT4, 4 pcs (KIT EF XT4 4PCS)
KIT EF XT4 4pcs
ABB
Kortswitch Insert 2-Pole
8114.1
ABB
ABB SACE Tmax XT4S 250 Moulded-Case Switch-Disconnector — 4-Pole
1SDA068179R1
ABB
Tenton 3/6V White SBC/U6.0.1-84
ABB

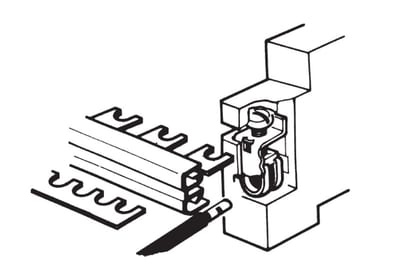

ABB GHV0360874R0031 SZ-PSB 53N BUS BAR
ABB

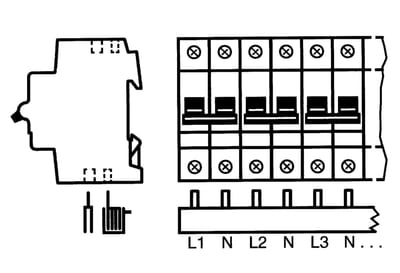

ABB 2CDL240101R1020 PS4/20N Busbar 4PH.,20PINS,10 MM²
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF146-30-11-13 100-250V 50/60Hz / DC?
- AF146-30-11-13 100-250V 50/60Hz / DC can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is AF146-30-11-13 100-250V 50/60Hz / DC.
- What is the HS code for AF146-30-11-13 100-250V 50/60Hz / DC?
- The customs tariff (HS) code for AF146-30-11-13 100-250V 50/60Hz / DC is 8536.90.
- Who manufactures AF146-30-11-13 100-250V 50/60Hz / DC?
- AF146-30-11-13 100-250V 50/60Hz / DC is a ABB product in the Electrical Components range.
- Is a datasheet available for AF146-30-11-13 100-250V 50/60Hz / DC?
- Yes — the AF146-30-11-13 100-250V 50/60Hz / DC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF146-30-11-13 100-250V 50/60Hz / DC?
- The minimum order quantity is 1.
- Is AF146-30-11-13 100-250V 50/60Hz / DC available?
- Yes — AF146-30-11-13 100-250V 50/60Hz / DC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
